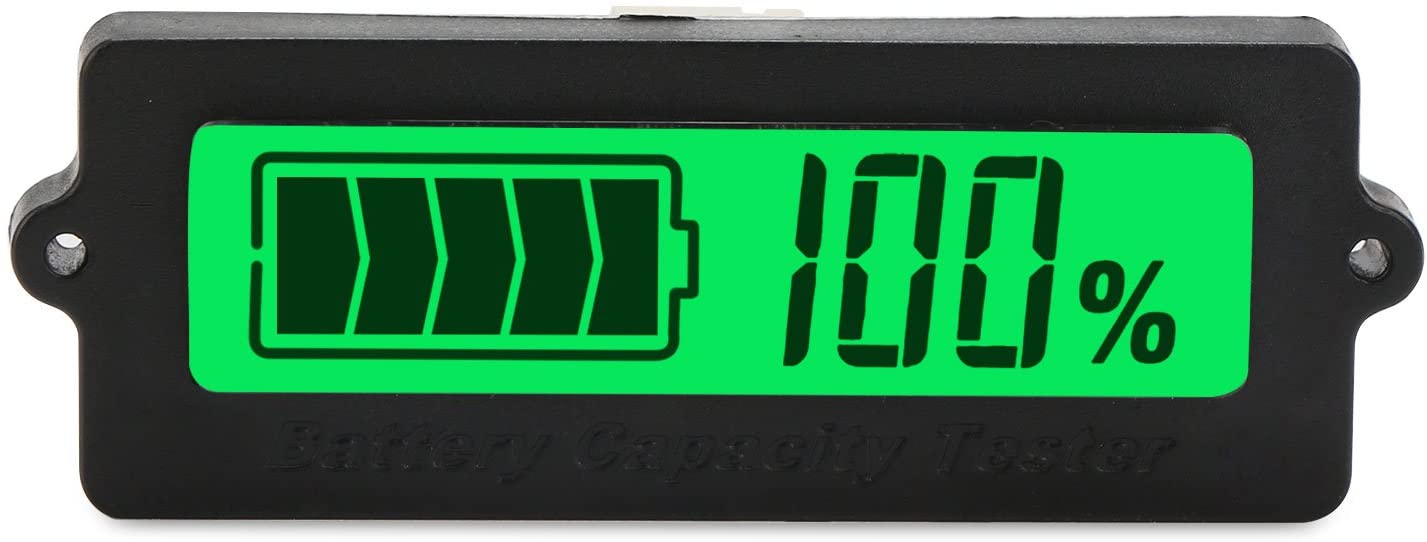

DROK 8-63V 12v 24v 36v 48v Battery Capacity Tester
Parameters:
Operating current: < 5mA
Operating voltage:8-63V
Operating temperature: 0℃-40℃
Backlight: Green
Applicable battery specification: Lead-acid battery 12V, 24V, 36V, 48V; Lithium-ion battery 3-15 series
Applicable battery type: Ternary Lithium battery, Polymer lithium-ion battery, Lithium-ion battery, Storage battery, Water battery, etc.
Application: Various instruments and meters; portable device; golf cart; power bank; medical device, electrombile, self-balance car.
Battery Specification Adjusting Method:
Under the condition of power off, long-press the button on the back of the module (do not release) and power up the module.
The monitor will display the battery specification, then press the button again to choose the battery specification.
After choosing the specification you need, cut off the power and then power up the module again. The adjustment is finished.
Wiring Method:
Red wire: Battery +
Black wire: Battery -
White plug: the interface of the monitor (please pay attention to the direction of the interface)
Warm Tips：
The battery meter cannot be exposed to direct sun for long-term or be used in lower than -20℃ or higher than 60℃, otherwise, it will reduce its service life.
Package Includes:
1×Battery Capacity Reader
1×Lead Wire
