Product Description
Oxygen Sensor Failure Performance:
|
|
|
|
|---|---|---|
Detect the resistance of the oxygen sensorWhen the engine temperature reaches normal, unplug the wire connector of the oxygen sensor and use a resistance meter to detect the resistance between the oxygen sensor terminals. The resistance value should meet the requirements of the specific model standard value (generally 440Ω) |
Detecting oxygen sensor voltageUse the fault diagnosis instrument to detect the engine, extract the fault code, and observe the data stream. The operation of the oxygen sensor is judged by the magnitude and frequency of the voltage change of the oxygen sensor. If it is working properly, the voltage should be between 0.4 and 0.6V. If the voltage is always at 0.45V, the oxygen sensor will not work. |
Observe the appearance color of the oxygen sensor probe
|
How to install the oxygen sensor?
|
|
|
|
|
|---|---|---|---|
1.Identify the faulty sensor.Before beginning, connect the OBD II scan tool to the vehicle and read the codes to determine which specific oxygen sensor has failed and needs to be replaced.Once the faulty sensor has been identified, raise the vehicle and secure it on jack stands. Be sure to raise the vehicle on the side which you will allow you to access the oxygen sensor that needs to be replaced. |
2.Removing the Old Sensor.Disconnect the electrical connection to the oxygen sensor.To remove it, locate the small tab on the end of the plug. While pushing the tab down, pull the plug back by hand.Avoid attempting to cut and then solder the wires to the new oxygen sensor. And then unscrew the oxygen sensor using a ratchet wrench.The easiest way to detach the sensor is by using a 3⁄8 in (0.95 cm) ratchet wrench fit with a 7⁄8 in (2.2 cm) oxygen sensor socket. |
3.Installing the New Sensor.Turn the sensor clockwise to secure it on the exhaust line. Fit the tip of the sensor into the hole on the exhaust line. Make sure it is centered and goes in smoothly as you begin rotating it clockwise by hand. Once it is tightly in place, use an oxygen sensor socket or open end wrench to give it a final turn.And then plug the electrical connector back into the vehicle. The cable will be hanging from the free end of the sensor. Plug it into the outlet port close to the exhaust line.Push the plug in until it snaps into place. Make sure the cable isn’t touching the engine or other parts that heat up when the vehicle is in use. |
4.Start the vehicle.Start the car to see if the problem is fixed. In some vehicles, you may need to clear the check engine light manually. Shut off the engine, then turn the car’s power on using the ignition key. Use the delete feature on an OBD code scanner to reset the light.Disconnect the battery or take the vehicle to a mechanic for additional ways to shut off the check engine light.If the check engine light comes back on, either the oxygen sensor wasn’t installed correctly or your vehicle has another problem. |
Automotive oxygen sensor is the key sensor of electronic fuel injection engine control system component is to control auto emissions, reduce environmental pollution, the key to improving the quality of fuel burning automobile engine parts.

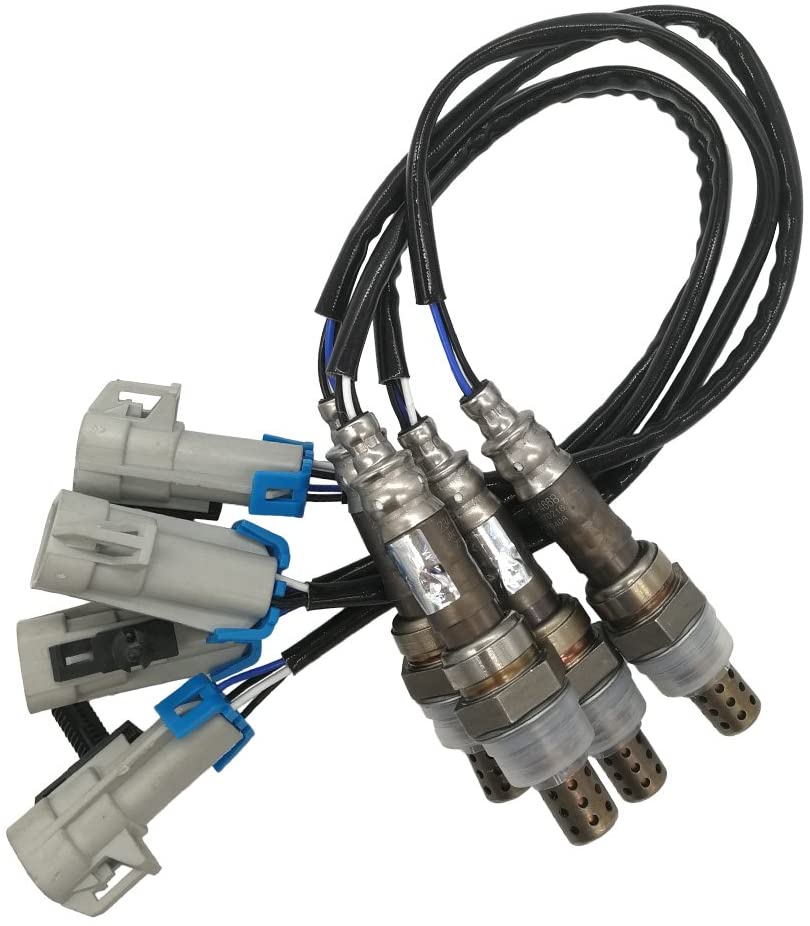

JESBEN OXYGEN SENSOR Feature :
- Sensor life is long
- High quality
- Clear exhaust emissions
- Meet OEM Specifications
Please ensure this product will fit your vehicle by checking the photos or the part number with your old item before buying.You also provide your chassic number or more car details (for example:Year, Make, Model etc), we can check the correct item for you.Thanks for your understanding!
