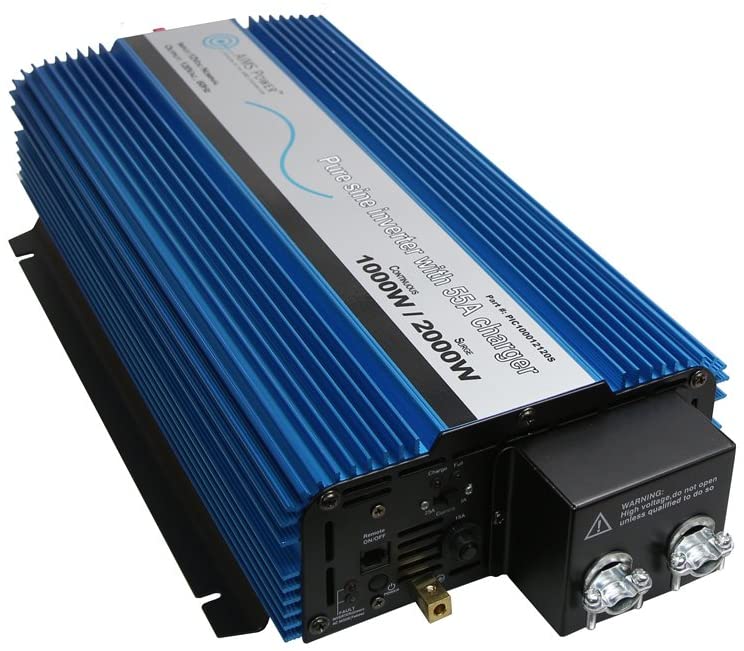

AIMS Power PIC100012120S Pure Sine Inverter Charger, 1000 Watt continuous power, 2000 Watt surge power capability (peak power), Selectable 25A or 55A Battery Charger, Built in Transfer Switch, 12 Volt DC input, Pure sine wave
Key Features
1000 Watt continuous power
2000 Watt surge power capability (peak power)
Selectable 25A or 55A Battery Charger
Built in Transfer Switch
12 Volt DC input
Pure sine wave
Conformal Coated Circuit Board
AC Direct Connect Terminal Block
Efficiency 86% - 90%
Over load and Short circuit protection
On/off switch
Dual cooling fans thermally controlled
Instruction manual
Specifications
Battery Charge Current 25A or 55A (optional)
AC/Inverter Transfer Time: < 20ms
DC input / operating voltage: 10-16 Volts
AC Input Voltage Range: 120 Volts AC +/- 10%
Output voltage: 120 Volts AC
Output frequency: 60 Hz
Output wave form: pure sine wave (THD <3%)
Over voltage shutdown: 16 +/- 0.5V
Battery low voltage alarm: 9.8 +/- 0.3V
Battery low voltage shutdown: 9.5 +/- 0.5V
Battery Overcharge Protection Voltage: 14.4V
Battery Float Charge Voltage: 13.5V
Efficiency Range: 86% - 90%
No Load Current: 1.2A
No load minimum operating temperature: 32° Fahrenheit
Dimensions: 17 ¼" x9 ¼" x 4"
Weight 12.1 Lbs
