Product Description

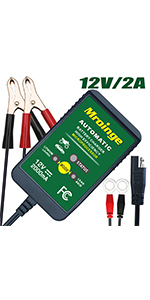

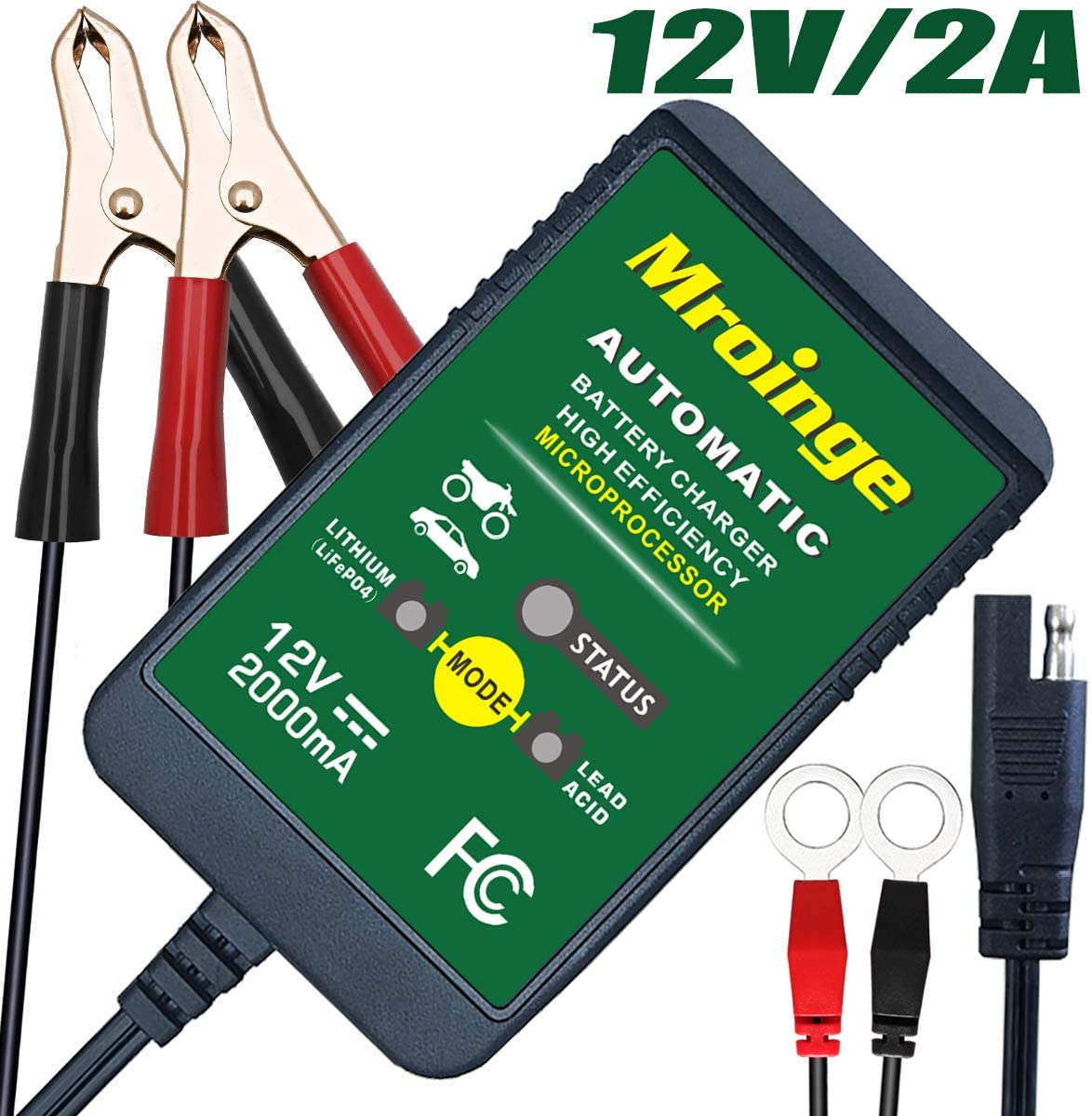

Mroinge MBC022 12V 2A Battery Charger is much more than a trickle charger. It has a microcomputer chip, is lightweight, compact, fully automatic and very easy to use especially in small spaces, that digitally controls the 4-stages of battery charging (Initialization, constant current, constant voltage and floating charge). the charger come with power down memory function, so the charger will re-start to charge the battery automatically when the main power recovered.
This battery charger will keep the battery fully charged so that it is ready to go always. It has a microprocessor controlled fully automatic charger and maintainer and is designed to extend the life of any 12V lead acid and 12V-Lithium(LiFePO4) battery commonly used in automobiles, motorcycles, ATVs, personal watercraft, RVs, boats, golf carts, back-up generator systems, etc.
Specification:
Input: 100-120VAC 50/60Hz 0.6A
Output: DC 12V 2 Amp
Suitable battery type: 12V lead-acid and 12V Lithium (LiFePO4)
Charging Battery: 6-65Ah
Maintaining Battery: 6-120Ah
Package:
1 x Battery Charger
1 x Alligator Clips
1 x Battery Rings
1 x User Manual
Multi-level Safety Protection
4 STAGES - STANDARD CHARGE & MAINTAIN MODES
- Initialization: Initialize diagnostic battery performance and desulfating the battery through 17V pulse.
- Bulk: Major charging stage where the battery receives the majority of its charge. During this stage the battery brought to 75 - 80% of its charger. The MBC022 charger delivers maximum current until the terminal voltage has risen to the full charge level for Normal battery.
- Absorption: Completes the charge up to virtually 100% at a constant voltage. The current tapers off after the current reached the minimum level.
- Float: Maintenance charging at constant voltage, keeping the batteries at 100% charge. Float mode chargers indefinitely without damaging the battery.

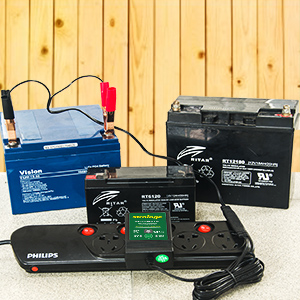

EASY TO USE
The unit has a very simple operation design, so very easy to use.
- Firstly, Connect the AC power supply.
- Secondly, Choose the right battery type( lead-acid or lithium(LiFePO4) ).
- At Last, Correct connect the battery.
IMPORTANT: When you select the charging mode, you must disconnect the battery.
The unit is built-in 2 color LED indicates stage of charging, so very easy to use.
- FLASHING RED: not charging battery, reverse battery.
- SOLID RED: battery charging.
- FLASHING GREEN: battery greater than 80% charged.
- SOLID GREEN: full charged and maintaining.
 |
 |
 |
 |
|
|---|---|---|---|---|

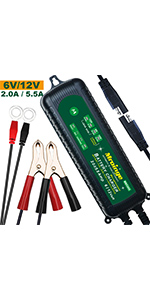

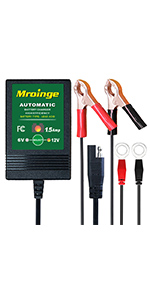

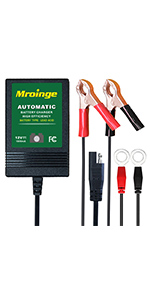

| MBC010 | MBC015 | MBC022 | MBC055 | |
| Power | 1A | 1.5A | 2A | 2A & 5.5A |
| Battery Voltage | 12V | 6V & 12V | 12V | 6V & 12V |
| Multi-Stage Charging | 4-Stage | 4-Stage | 4-Stage | 4-Stage |
| AGM/GEL/WET Charging | ✓ | ✓ | ✓ | ✓ |
| 12V Lithium(LiFePO4) Charging | ✓ | ✓ | ||
| Maintenance Mode | ✓ | ✓ | ✓ | ✓ |
| Spark Proof/ Reverse Polarity Protection | ✓ | ✓ | ✓ | ✓ |
| Waterproof | ✓ | |||
| Recommend Battery Capacity(Ah) | 3-40 | 5-50 | 6-65 | 6-150 |
