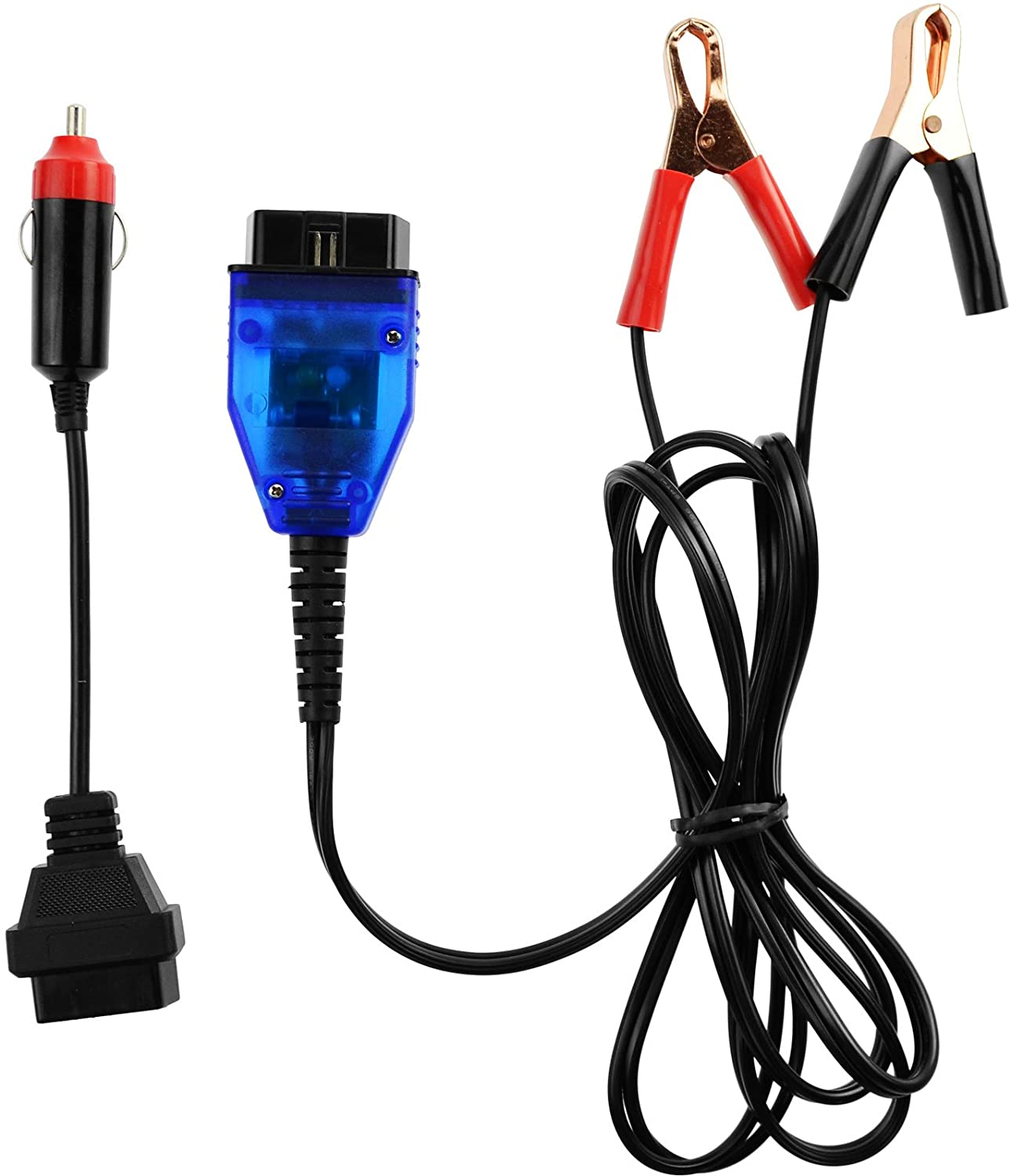

Allsun Car Memory Data Saver Automotive Emergency Power Supply Cable Battery Cable OBD II Memory Saver Connector Vehicle Clock Memory Saver Two 2 Alligator Clips and Cigarette Lighter Socket
: In stock
:
: PartLimit
$26.44
Regular price
$52.89
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
Category:
Tags:
Product Description
Very thanks for choosing Allsun Battery Replacement OBD-II Connector,The main products from Allsun contain Car Data Saver,Multi-meter,Digital Multimeters,Digital Clamp meter,Metal Detectors,Distance Measures,Infrared Thermometer,Voltage, Battery Tester,Digital Scale and multifunction sensor all of which have an advantage in domestic and overseas markets.
If you are now looking for a Battery Replacement Tools , exactly, just choose it!
INTRODUCTION: OBD-II Connector(With Cigarette Lighter Socket)
Normally, when you replace a car's storage battery, the car's on-board computer will be turned off and the relevant data and personal settings ( such as radio station setting, clock setting, etc ) will be lost. You can use this Car Data Saver to keep your car's computer powered through the OBD-II port or the cigarette lighter socket on the car while you replace the car's storage battery.
The Car Data Saver needs an additional 12V storage battery as a temporary power source. It is a very useful tool for car service.
This Car Data Saver can only be used on 12V car electrical system.
▲▲▲TIPS:
- If both the two LEDs on the Car Data Saver lights green, the charge level of this storage battery is high enough.
- If a LED on the Car Data Saver lights green and another LED lights red, this storage battery is not high enough and needs to be charged before it can be used as a temporary power source, or you can use another 12V storage battery which is high enough as a temporary power source.
- Disconnect the car's storage battery ( which is to be replaced ) from the car while remaining the connection between the car and the Car Data Saver, which is with the storage battery of temporary power source. Then connect a new storage battery to the car, make sure that the polarity connections are correct.
- Disconnect the Car Data Saver from the car. Then disconnect the Car Data Saver from the storage battery of temporary power source.
How To Use Battery Replacement OBD-II Connector
|
|
|
|
|
|---|---|---|---|
Step OneIf you want to connect the Car Data Saver to the OBD-II port on the car, remove the ignition key from the car. |
Step TwoThen connect the output socket of the Car Data Saver to the OBD-II port on the car. Note:If it is not OBD standard, use the cigarette lighter connector. |
Step ThreeWhether the Car Data Saver is connected to the OBD-II port or connected to the cigarette lighter socket, the connection between the Car Data Saver and the OBD-II port ( or the cigarette lighter socket ) is good if a LED on the Car Data Saver lights green. |
Step FourPrepare a 12V storage battery which is to be used as a temporary power source. Then connect the red clip of the Car Data Saver to the positive terminal of this storage battery, and the black clip of the Car Data Saver to the negative terminal of this storage battery. |
Two LEDs on the Car Data Saver Lights Green
If both the two LEDs on the Car Data Saver lights green, the charge level of this storage battery is high enough.
If a LED on the Car Data Saver lights green and another LED lights red, this storage battery is not high enough and needs to be charged before it can be used as a temporary power source, or you can use another 12V storage battery which is high enough as a temporary power source.
Connecting the Car Data Saver to the Cigarette Lighter Socket
NOTE
- If a LED on the Car Data Saver gives abnormal indication, stop using the Car Data Saver and disconnect its connections with the car and the storage battery which is used as a temporary power source. Then check whether the Car Data Saver is damaged and whether the Car Data Saver's connections were correct.
- Don't short the red clip and the black clip of the Car Data Saver.
- Never short the positive terminal and the negative terminal of any battery.
- Always adhere to the relevant instructions of the car's users manual and service manual when you make any connection or disconnection.
- The Car Data Saver can only be used on 12V car electrical system.
- Do not operate the Car Data Saver where explosive gas, vapor, or dust is present.
- Use storage battery only in well-ventilated area.
- The Car Data Saver's operation temperature is: 0°C to 40°C; and storage temperature is: -10°C to 50°C.
