Ignition Coil 166-0772,Onan p220g ignition module,BGA ignition coil,CCKB ignition coil,Onan 166-0761 ignition coil works with Onan Points Models BF, BFA, BG, BGA, BGE, B43E, B43G, B43M, B48G, CCK, CCKA, CCKB, NHA, NHB, NHC, NHE, NHP, N52M.
Replaces Part Numbers:
166-0772
166-0804
166-0648
166-0820
166-0761
541-0522
5410522
1660772
1660648
1660820
1660804
1660761
HE541-0522
HE166-0761
Specifications:
166-0804 same as 166-0772 points only
166-0820 same as 541-0522 solid state only
A. (166-0820)
Primary Resistance: 3.12Ω
Primary Inductance: 6.67mH
Secondary Resistance: 20.5KΩ
Secondary Inductance: 41.30H
B. (166-0804)
Primary Resistance: 4.25Ω
Primary Inductance: 9.48mH
Secondary Resistance: 37.85KΩ
Secondary Inductance: 59.96H

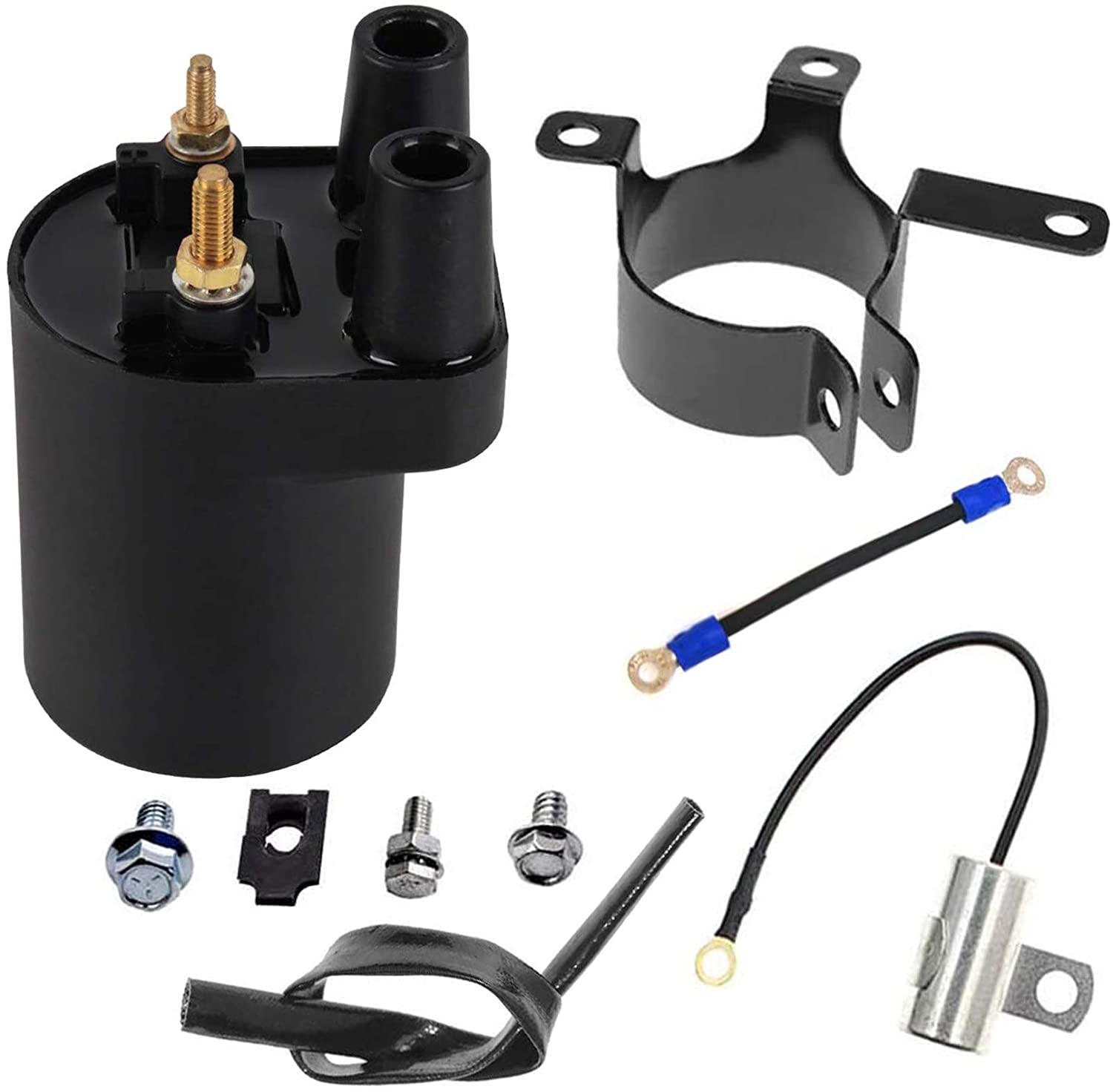

Package include:
1 x Ignition coil
3 x Mounting bolt
1 x Mounting bracket
1 x Lock clip
1 x Capacitance
1 x Insulating sleeve
1 x Connection terminal
