Specification & Feature:
Condition: 100% Brand New and High Quality.
Comes in a sealed package, ready to install.
The three main parts of the compressor clutch assembly are the coil magnet, the pulley, and the clutch plate. The clutch drive plate is splined to the input shaft of the compressor.
Fitment:
2003-2006 ACURA MDX
2004-2008 ACURA TL
2003-2007 HONDA ACCORD V6 3.0L
2005-2007 HONDA ODYSSEY
2005-2008 HONDA PILOT
2006-2008 HONDA RIDGELINE
If you are unsure whether the phone model is applicable, please contact us before placing your order.

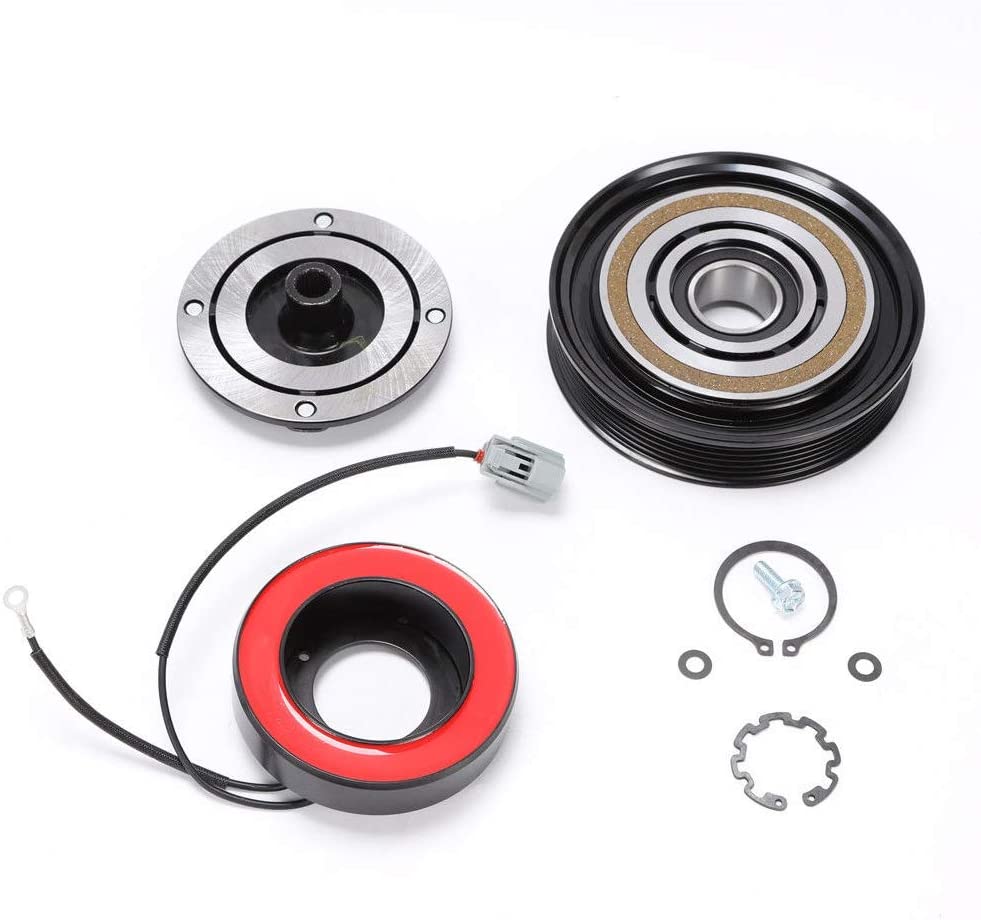

Package Includes:
1 x Pulley With Bearing
1 x Front Plate
1 x Electromagnetic Coil
Notes:
1. It should be ensured that the clutch is faulty. For example, check if the power supply circuit is working normally. If the power supply circuit works normally, the clutch does not pull in. This situation needs to be replaced.
2. Remove the compressor, remove the old electromagnetic clutch, check the compressor for damage, and clean the front cover and coil contact surface of the compressor without confirming that the compressor is not faulty.
3. Install a new coil and secure it with a screw or shaft with a circlip.
4. Install the pulley and fix it with the circlip of the shaft. Check if the pulley rotates with the coil and the friction is unqualified. To check the reason.
5. Install the suction cup and adjust it to a reasonable gap between 0.2-0.6MM with the gap pad. After fixing the suction cup, check whether the suction is normal. After the power is off, the rotating pulley is separated from the suction cup. No friction is qualified.
6. Install the compressor.
