ALLOYWORKS 3 Row All Aluminum Radiator+2X12

ALLOYWORKS 3 Row All Aluminum Radiator+2X12"Fan Shroud Thermostat For 1963-1968 Chevy El Camino/Impala/Bel Air/Biscayne/Cappice USA

: In stock

:

: PartLimit

$322.99 Regular price $645.99

THIS LISTING INCLUDES THE RADIATOR AND THE SHROUD AND 2X12"FANS+THERMOSTAT KITS! Radiator Size: Row: 3 Row Core Material: Full Aluminum Radiator Cap: included Core and Tank: All Aluminum...

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

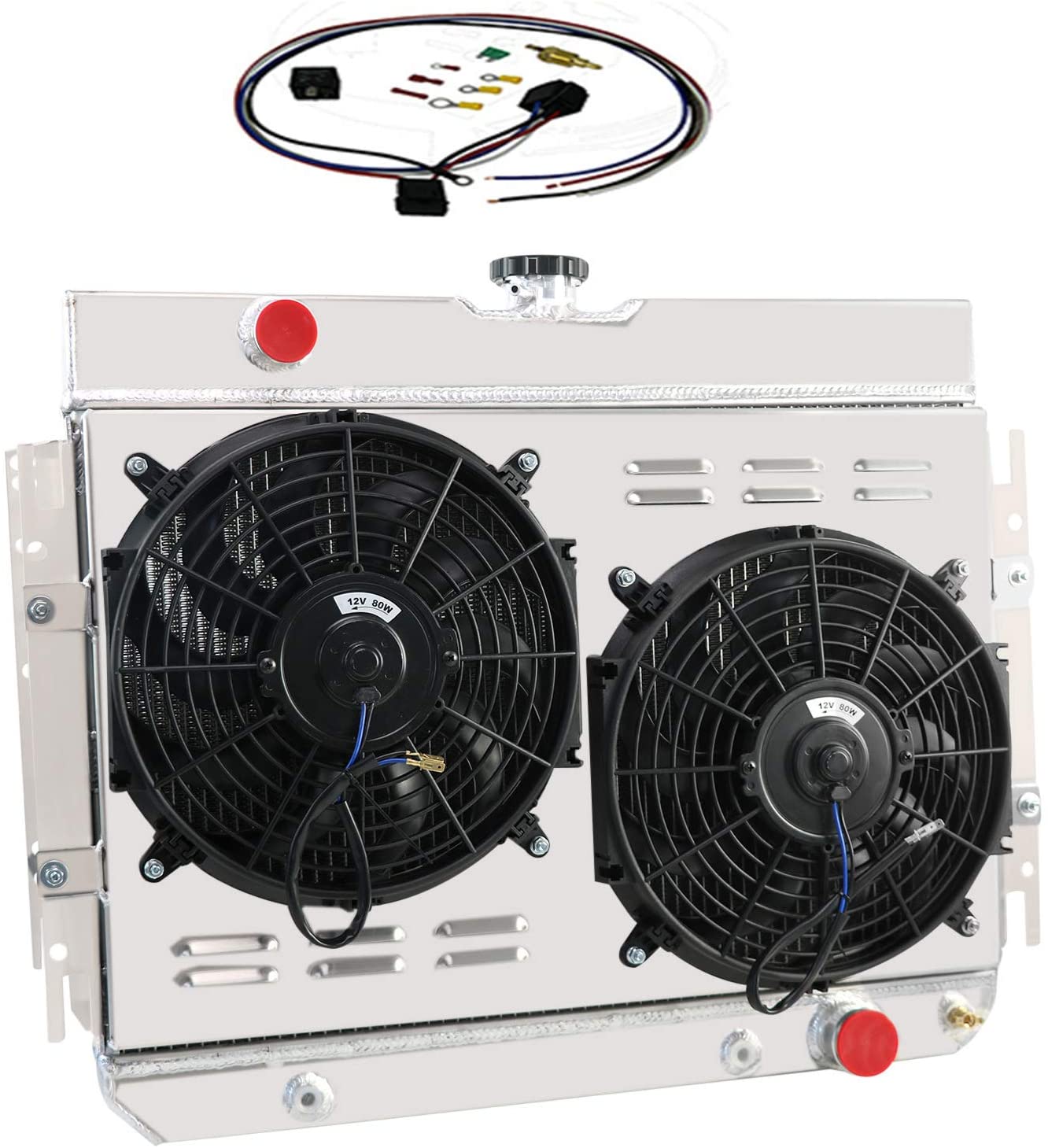

THIS LISTING INCLUDES THE RADIATOR AND THE SHROUD AND 2X12"FANS+THERMOSTAT KITS!

Radiator Size:
Row: 3 Row Core
Material: Full Aluminum
Radiator Cap: included
Core and Tank: All Aluminum
Radiator Flow: Down Flow
Core Dimensions: 16" H x 25-1/4" W
Overall Dimensions: 22-1/4" H x 27-3/4" W
Upper Inlet: 1-1/2" located on the Driver side
Lower Outlet: 1-3/4" located on the Passenger side
Trans Cooler Included
Mount Type: Bracket
Trans Cooler Details: 1/2" 20 Straight Thread G1/4
Mounting Specs: Vert - 10 1/2 / Horizontal - 26 3/4
Transmission: Automatic and Manual.

Vehicle Fitment:
FOR 1964-1967 CHEVY CHEVELLE/EL CAMINO I6/V8
FOR 1963-1968 IMPALA MANY CHEVY GM CARS
FOR 1964-1967 Chevelle
FOR 1963-1968 CHEVY CHEVELLE/ IMPALA
FOR 1963-1968 Chevrolet Chevy Bel-Air
For 1963-1968 Chevrolet Impala/Bel Air/Chevelle
FOR 1964-1967 Chevy Chevelle Malibu
FOR 1963-1968 Chevy Biscayne
FOR 1966 1967 Chevy Caprice

FAN Specifics and Benefits:
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 12.050”
Thickness (in): 2.500”
Number of Blades: 10 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation

Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.
Probe typically threads into radiator, water outlet or manifold.
