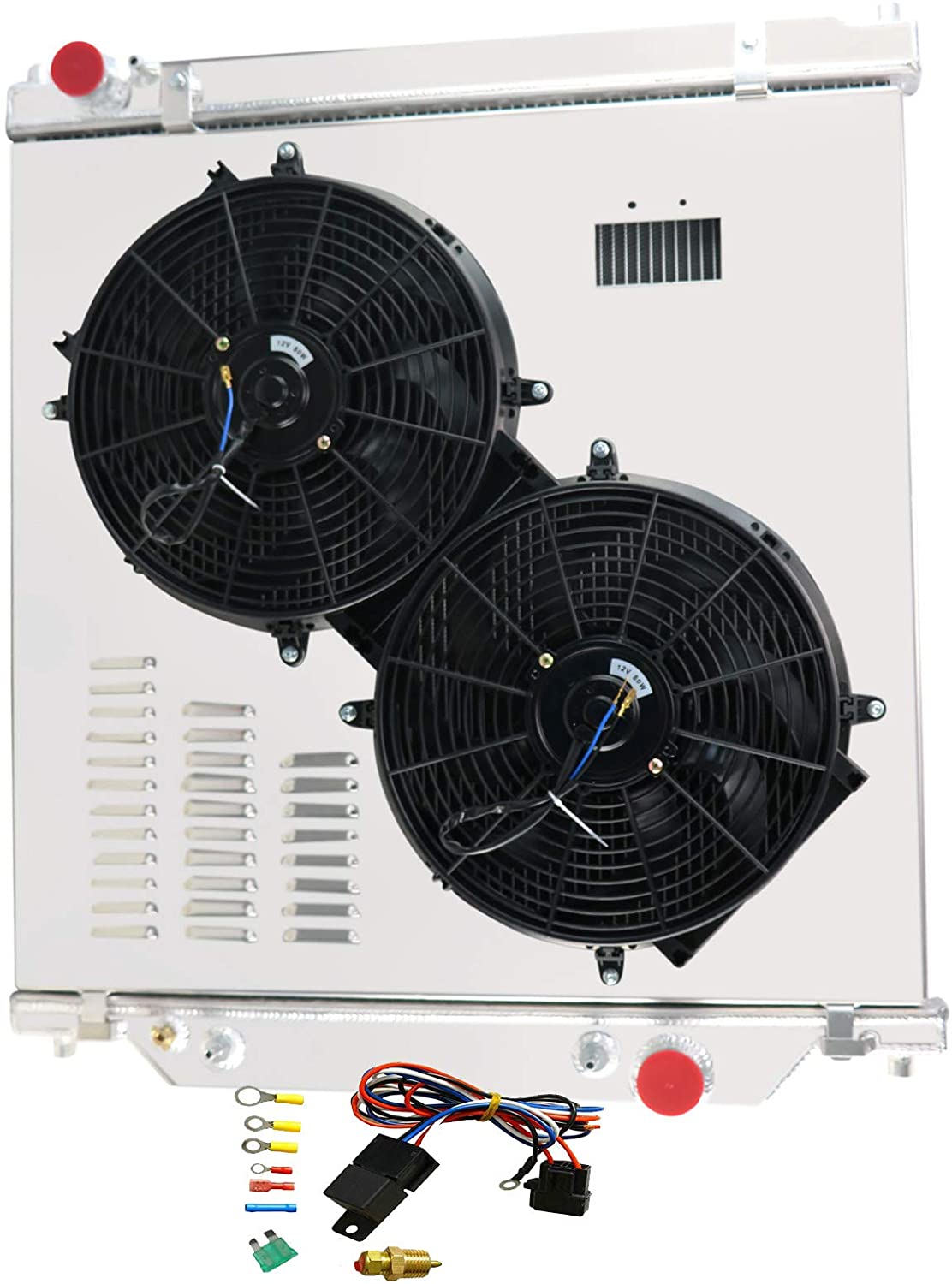

ALLOYWORKS 3 Row Aluminum Radiator+Fan Shroud+Relay For 1999-2005 Ford F-250 F-350 Super Duty/Ford Excursion 6.8L 7.3L Powerstroke Engine

ALLOYWORKS 3 Row Aluminum Radiator+Fan Shroud+Relay For 1999-2005 Ford F-250 F-350 Super Duty/Ford Excursion 6.8L 7.3L Powerstroke Engine

: In stock

:

: PartLimit

$478.99 Regular price $957.99

THIS LISTING INCLUDES THE RADIATOR AND THE SHROUD AND 12" FANS + Thermostat Kits! Radiator Size Row: 3 Row Core  Material: Full T-5056 Aluminium Core and Tank: All...

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Tags:

THIS LISTING INCLUDES THE RADIATOR AND THE SHROUD AND 12" FANS + Thermostat Kits!

Radiator Size

Row: 3 Row Core

Material: Full T-5056 Aluminium

Core and Tank: All Aluminum

Overall Size: 30" x 31.7''

Core Size: 29.4" x 26.5"

Inlet: 1.77"

Outlet: 1.77''

OEM Style Brass Petcoke

CNC machined filler neck

Aircraft 5057 grade aluminum and with raw aluminum finish

OEM style brass petcock drain.

Transmission: Automatic and Manual.


Vehicle Fitment

For 1999-2005 F-250 F-350 F-450 F-550 Super Duty Excursion 6.8L 7.3L V8 V10


FANS:

Maximum Fan CFM: 1730 cfm

Fan Diameter (in): 12.050”

Thickness (in): 2.500”

Number of Blades: 10 blades

Maximum Fan RPM: 2,250 rpm

Blade Material: Plastic

Amp Draw: 12.70 amps

Includes the Mounting Tabs for an Easy Zip Tie Installation


Thermostat Kit:

Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at preset temperature.

180'F turn-on temperature, 165'F turn-off temperature.

3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.

Probe typically threads into radiator, water outlet or manifold.
