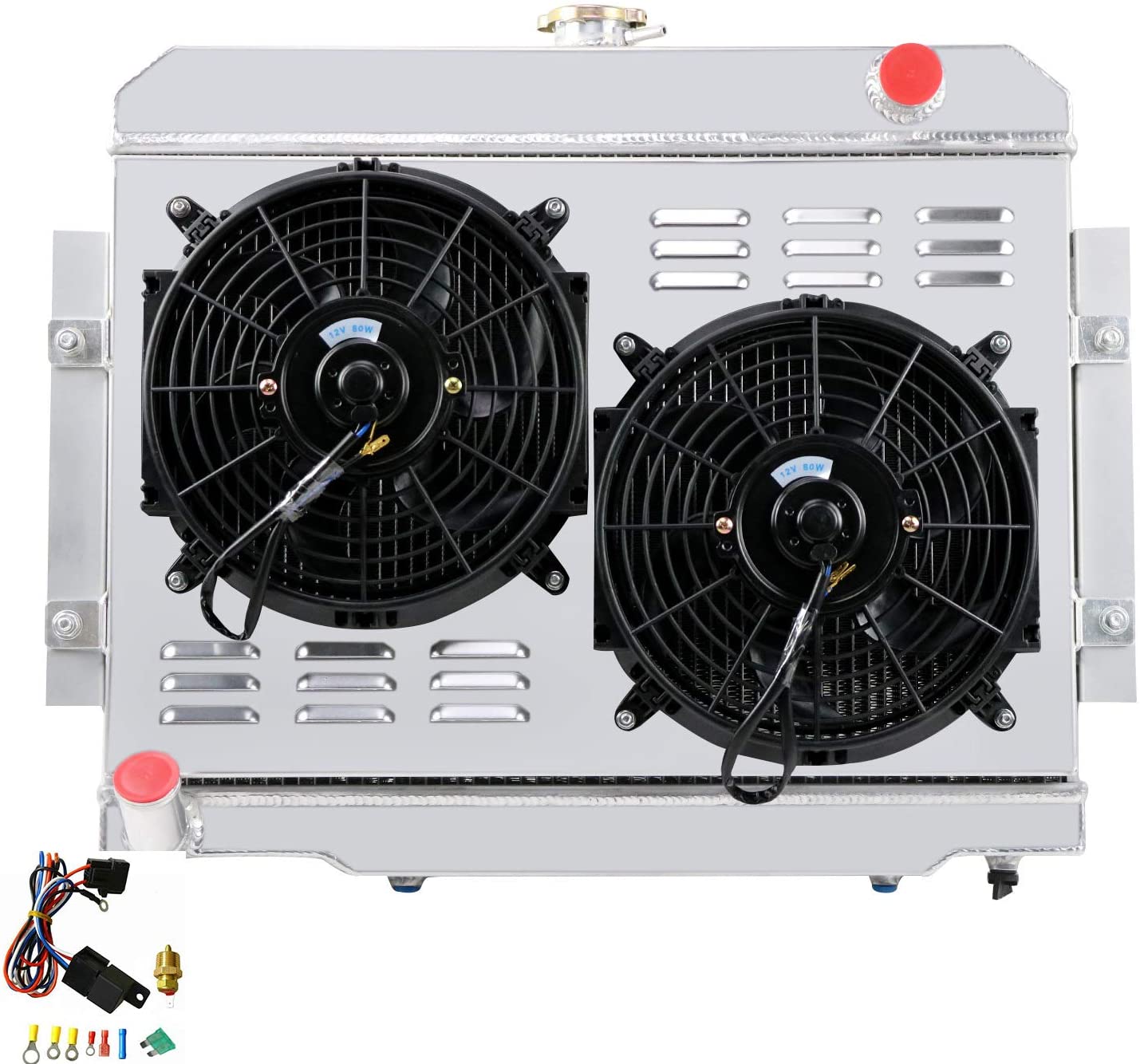

THIS LISTING INCLUDING THE RADIATOR AND SHROUD AND 2X12" FANS AND THERMOSTAT KITS!!
Radiator Size:
Row: 4 Row Core
Material: Full Aluminum
Radiator Cap: included
Core and Tank: All Aluminum
Radiator Flow: DOWN FLOW
Core Height: 15.625
Core Width: 24
Overall Height: 22
Overall Width: 27
Inlet Diameter: 1.5
Outlet Diameter: 1.5
Upper Hose Fitting: PASS
Lower Hose Fitting: DRIVER
Trans Cooler Details: 1/8-27NPT
Mounting Type: BRACKET
Mounting Specs: Vert - 7 Horizontal - 25 3/4
Transmission: Automatic and Manual !
Vehicle Fitment:
FOR 1972-1986 JEEP CJ CJ5/CJ6/CJ7 3.8L / 4.2L / 5.0L
FOR 1972-1986 JEEP CJ CJ5 CJ6 CJ7 I6/V8
FOR 1972-1986 JEEP CJ CJ5 CJ7 V8 CONVERSION FORD-ENGINE 3.8L / 4.2L / 5.0L
FOR 73-75 Jeep CJ6 All Models
FANS:
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 12.050”
Thickness (in): 2.500”
Number of Blades: 10 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation
Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.
Probe typically threads into radiator, water outlet or manifold.
