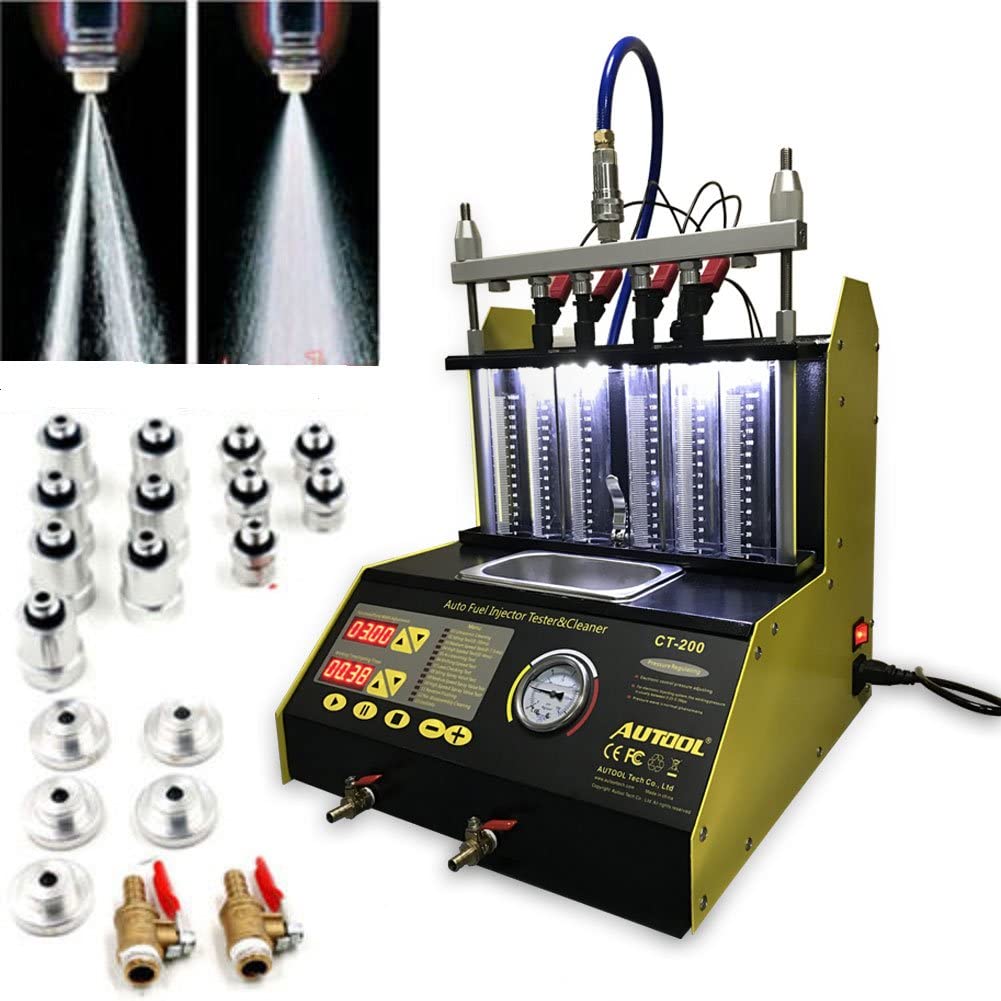

The CT200 cleaning machine how to work:
1 Clean injector's outside with gasoline or cleaning liquid before open machine
2 Putting injectors in ultrasonic bathtub after the outside of injector are free of dirt.
3 Turn on ultrasonic system，pulsed allowing the ultrasonic energy to dislodge any particles even build-up inside the injectors.
4 Fixed injectors on main machine
5 Testing injectors for resistance, shorts, and current draw
6 Performing leak test, spray pattern, and flow rate testing on flow bench.
7 The injectors are now returned to the flow bench for retesting of all functions.
Operation points:
Ultrasonic cleaning:
1.The cleanser added into the ultrasonic cleaner just soaked the injectors’ needle is suitable.
2.Before the ultrasonic cleanser is added into ultrasonic cleaner, do not turn on the ultrasonic cleaner. Otherwise, damage may be incurred.
3.Strictly prohibit to put the pulse signal cable or its connecter into the cleanser, otherwise damage will be incurred.
4.The continue work time of the ultrasonic cleaner don’t be more than 30min, otherwise it will shorten the life.
5.Not in using, please put out the power plug.
Uniformity/Sprayability Test:
Under this function, the parameters of RPM, PW and time can be adjusted in real time.
Leakage Test:
Under this function, the parameter of fuel pressure can be adjusted in real time.
Injecting Flow Test:
Under this function, the parameter of fuel pressure can be adjusted in real time.
Auto. mode Test:
Under this function, the parameter of fuel pressure can be adjusted in real time.
Package include:
1 x CT200 Unit
2 x Valve (for discharging fluid from machine tank)
6 x Adapter for fixing injector on machine
6 x linkage
6 x Blocker for block distributor
1 x Distributor Kits
1 x Impulse cable for providing power to open injector
1 x English Manual
