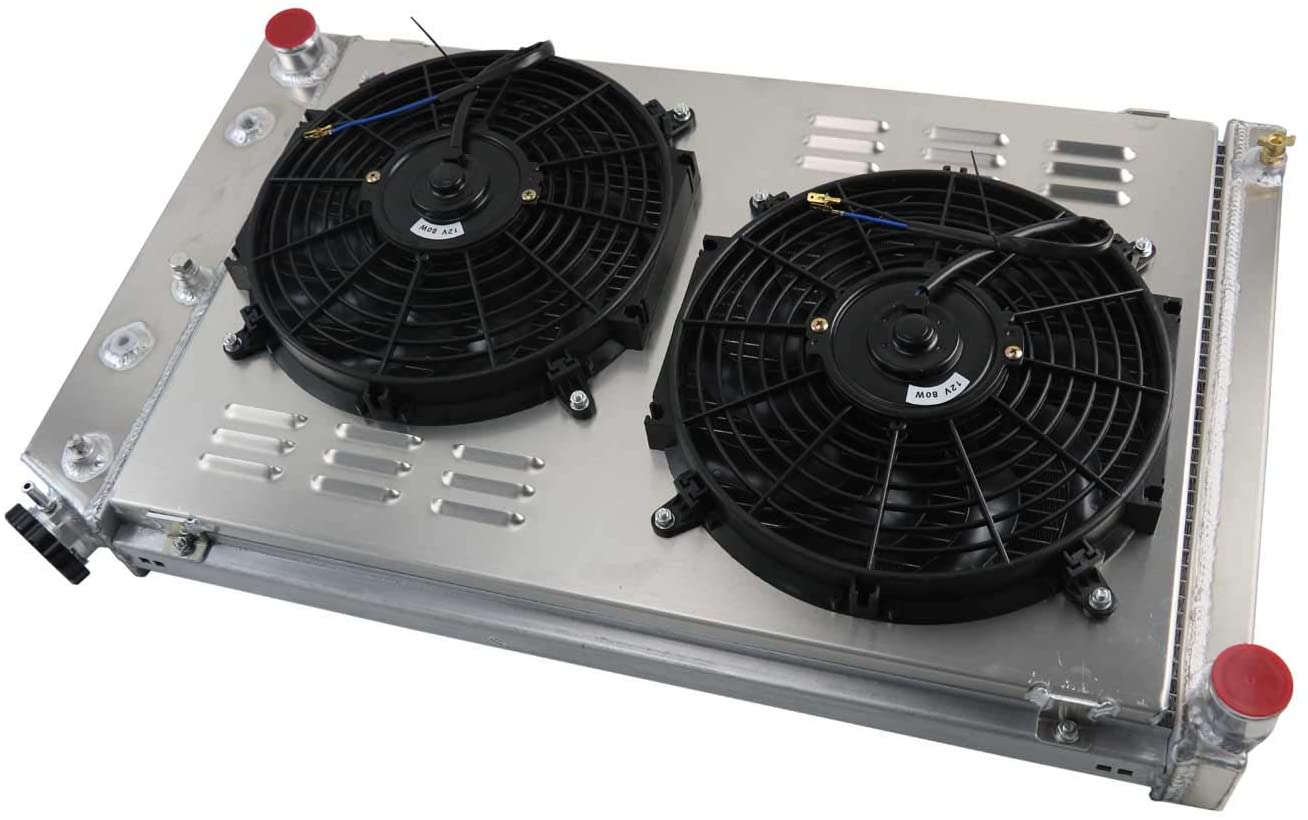

CoolingCare Radiator is designed and specifically engineered to maximize cooling efficiency by up to 30%, boost engine functions and protect your car from overheating. The radiator features a lightweight core, and holds up to more coolant. The CoolingCare radiator showed a 20degF drop in outlet temp compared to the OEM.
CoolingCare fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place. With excellent operating temperature management, allowable levels of engine temperature are stabilized.
✦Radiator Details:
Core Size :17" H x 26-1/4" W
Overall Size :18-1/4" H x 31-5/8" W
Upper Inlet: 1-1/2" located on the Driver side
Lower Outlet: 1-1/2" located on the Passenger side
Trans Cooler Details: 1/2" 20 STRAIGHT THREAD G1/4
Mount Type: Saddle
Mounting Specs: Vert - 13 1/4 Horizontal - 24 3/8
✦Fan Specification:
OE Fitment or Replacement, Push or Pull Type
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 10.050”
Thickness (in): 2.500”
Number of Blades: 10 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation
