IGentle Tip:
please note this radiator overall width is 32 inch approx. If you need the 34 inch width radiator, whose ASIN is B07H7DHR4L.
Gap of two inch maybe may cause it to not fit your engine.

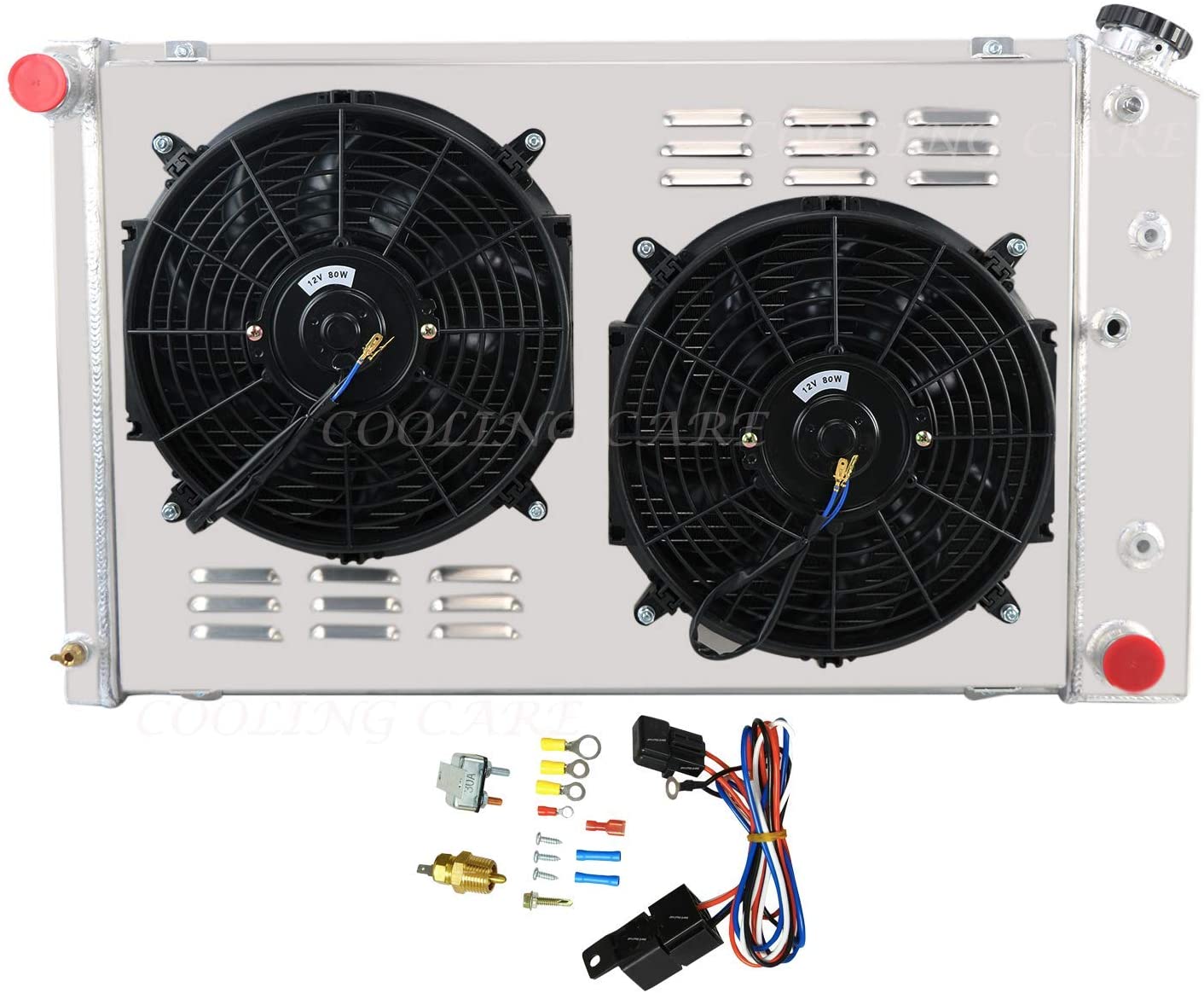

Radiator Specification
Core Dimensions: 17" x 26-1/4" x 2"
Overall Dimensions: 18-1/4" x 31-5/8" x 2-1/2"
Upper Inlet 1-1/2" located on the Driver side
Lower Outlet 1-1/2" located on the Passenger side
Trans Cooler Details: ￠32×215×G1/4
Fan Configuration
Maximum Fan CFM: 1730 cfm
Fan Diameter : 10 inch
Number of Blades: 10 blades
Maximum Fan RPM: 2250 rpm
Blade Material: Plastic
This Radiator is designed and specifically engineered to maximize cooling efficiency by up to 30%, boost engine functions and protect your car from overheating. The radiator features a lightweight core, and holds up to more coolant. The CoolingCare radiator showed a 20degF drop in outlet temp compared to the OEM.
The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place. With excellent operating temperature management, allowable levels of engine temperature are stabilized.
