A HELPFUL TOOL KIT YOU ARE DESERVE TO BUY IT!
The followings are what you need to remove the fan clutch:
1.Hammer. (Package not included)
2.13mm (or 1/2 inch) 3/8 drive deep socket. (Package not included)
3.43300 Pneumatic Fan Clutch Wrench Set.
NOTE:
On some GM 4.3L, 5.0L, and 5.7L equipped vehicles (if not all of them), you'll need to remove the upper half of the plastic fan
shroud before you begin to remove the fan clutch
Removal Procedure:
1.You should leave the serpentine belt on in order to loosen the fan clutch.
2.Choose the correct size wrench and place it on the fan clutch.
3.Place the straight pneumatic extension on the wrench.
Tip:
If you do have an impact air hammer (pneumatic hammer), you can skip step 4, since you can now use the impact air hammer instead of a hammer and 3/8 drive socket.
4.Place the 3/8 drive deep socket on the end of the pneumatic extension.The socket is used to protect the end of the pneumatic extension from the hammer blows you'll need to give it to loosen the fan clutch.
5.With your hammer, hit the socket placed over the pneumatic extension end. The idea here is to hammer the fan clutch tool so that it
will rotate the fan clutch counter-clockwise.

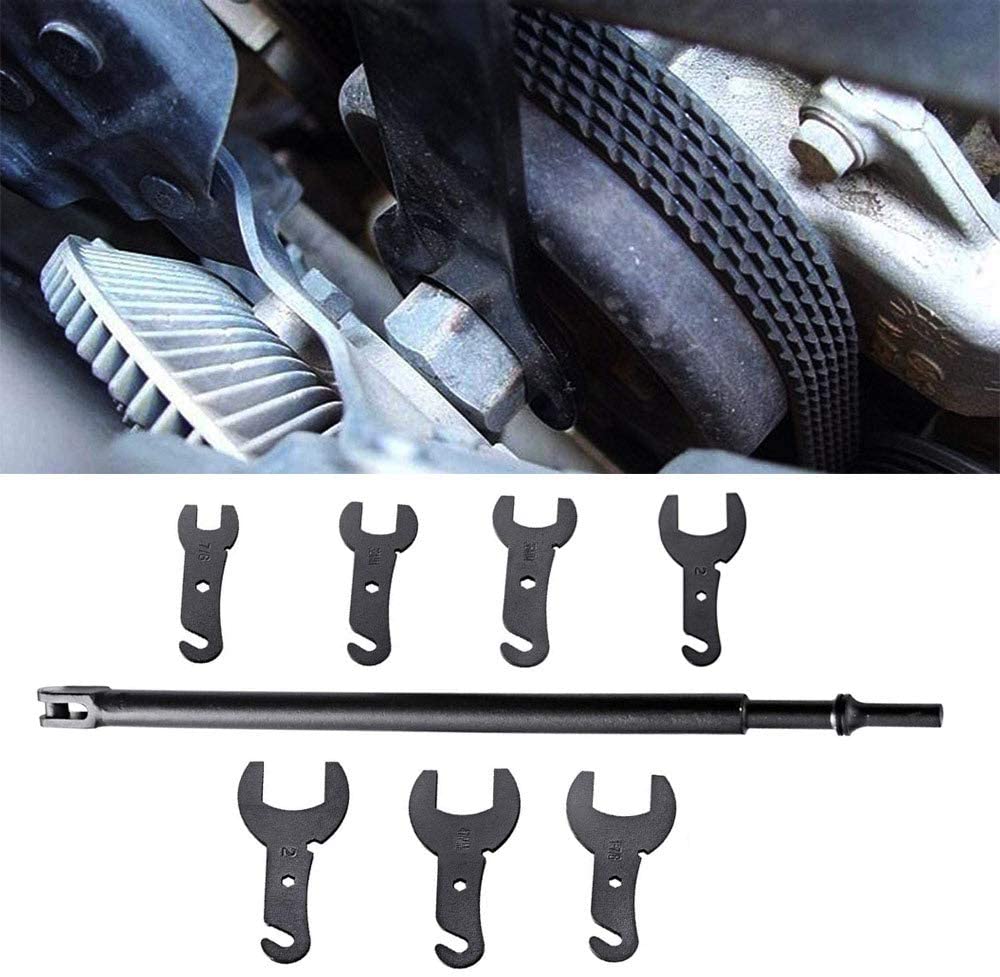

Set Includes:
1X handle
7X driving wrench
