Only need to connect the monitor power wire with car electronics system:
Red and yellow wire to car Positive/Live,
Black wire to GND,
Green Blue Grey Brown wire to reversing or other Trigger+ (or No need to connect)
Insert the Memory to the card slot and press Mode button to record
Simple to installation,Easy to use Easy to mount
Best for All Heavy Vehicle such as Box Truck Trailer Bus RV 5th Wheel Camper Pickup Boat School Bus Tractor Motorhome

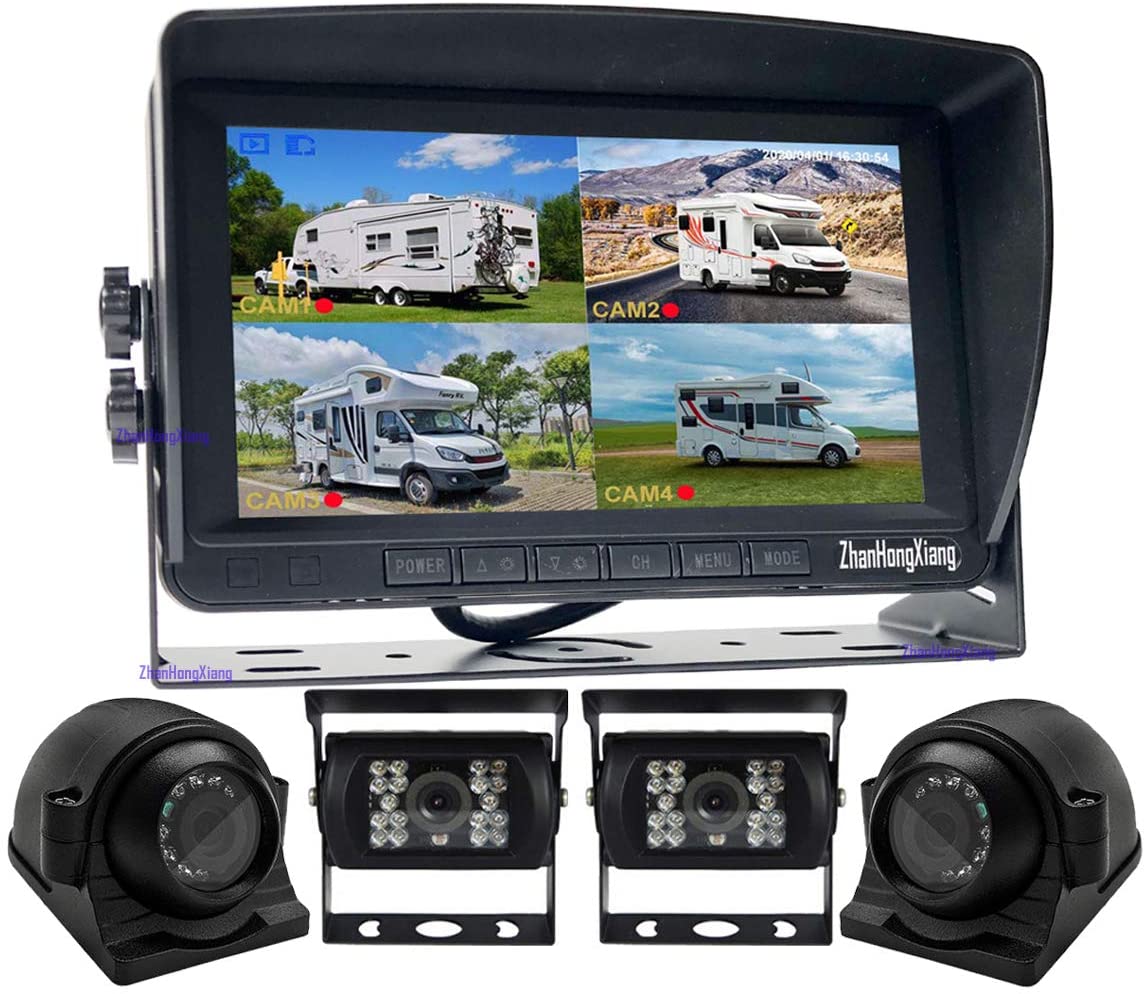

7" CAR TFT LCD MONITOR
Display Size:7 Inch AHD DVR Screen
Power requirement:DC 12V-24V
Consumption:8W
Video:4 channels input ,Quad Split Screen Display
Our Split monitor can display 4 video at same time
Full images/3 images/4 images adjustable
Build in SD DVR Great Loop Recording functions
Each camera Record with a separate video
Come with 32GB SD Memory Card, Max support 128GB
Reverse Grid Lines Can be turn on or off
Image Can be adjust for mirror or none Mirror
Image Support Flip with Upside Down
Suitable for Front view/ rear view/side view
360°clearly View to avoid blind spot
Net Weight: Approx. 1000g
Lauguage:English,Chinese
AHD 1080P IR Backup Camera
100% Not Wash Out AHD 1080P Sensor Mirror image
Lens:2.8mm(120 View angle )
Number of pixels:2.0 MP Camera(1920*1080)
Minimum illumination:0 LUX
Night vision:LED IR
Video Output:4Pin Aviation Connector
work Temperature:-20°C~+60°C
Power Requirement: DC 12V-24V
Waterproof:IP 69
Package included:
1 x 7" AHD 4CH QUAD Split DVR Monitor
1 x U shape Metal Bracket
1 x Remote controller
2 x 1080P 18 LED IR Rear View Camera
2 x 1080P 12 LED IR Side View Camera
1 x 4Pin 20m Aviation Cable
1 x 4pin 10m Aviation Cable
2 x 4Pin 5m Aviation Cable
1 x 32GB SD Memory
