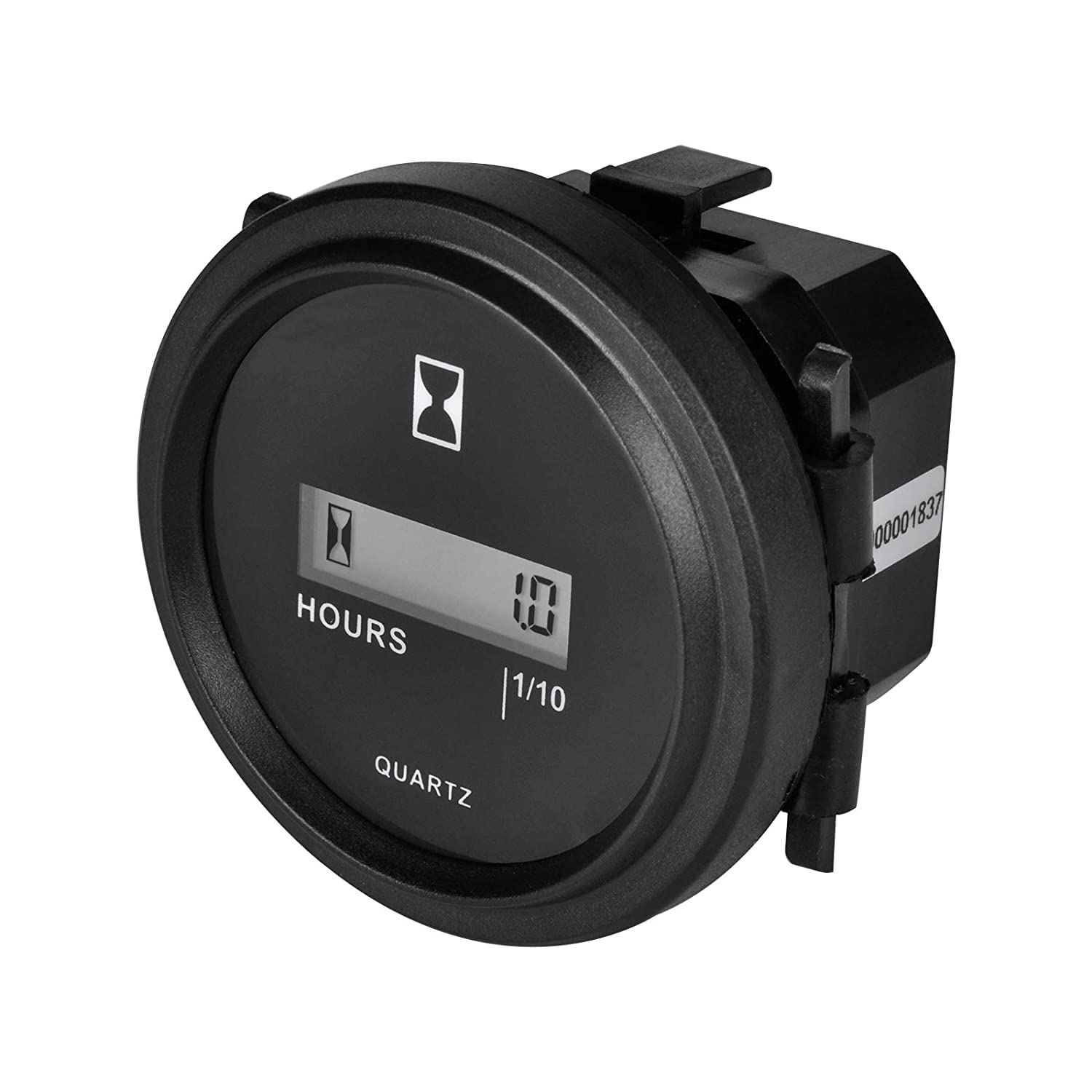

Jayron JR-HM005DC Snap in hour meter Round LCD Hour Meter Quartz hour meter DC4.5V-90V 5V 12V 24V 36V 72V 90V for DC powered equipmet such as fork Cart Boat Tractor Generator Engine Mower Resettable and any other battery powered equipment.
Introduction
-Resettable LCD Hour meter. It works on DC powered device.Accumulating total running hours,toal time resettable.
-A 6-digit, 7 segment LCD display. The accumulated hours are stored on powerless, nonvolatile data backup using CMOS EEPROMtechnology.
-where small space and reliable instruments are required with memory that does not rely on a battery.
-The unit is ideal for maintenance applications.
Specification
-Display Reading:999999 with running indicator(Automatically recycle to zero)
-Digit Height: 7mm
-Operating Voltage: 4.5V to 90V DC, 50/60HZ
-Resolution:0.1Hours
-Memory Capacity:COMS EEPROM
-Storage and Operating: -40-85℃
-Humidity：95%RH +32C for 2Hours
-Protected From: Alternator load dump,inductive Switching
-Polarity:Positive/Negative/C
-Case Style: Front panel mount.Other styles are avaiable
Packing List
-Digital Hour Meter *1
-English User Manual *1
-Metal Terminal *3
-Insulation Sellve *3
