Product Description
|
|
|
|
|
|---|---|---|---|

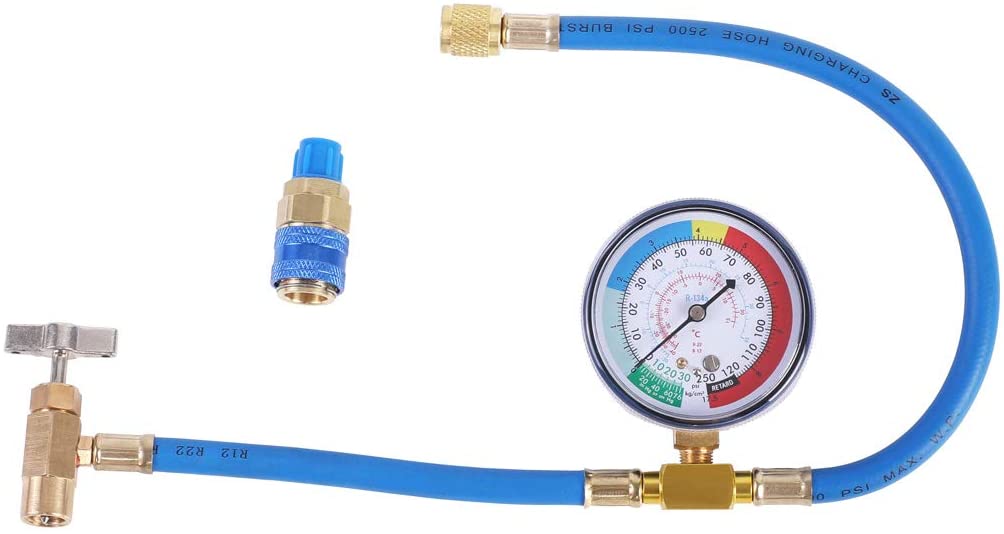

ACCURATE LOW PRESSURE GAUGEDual pressure unit, with scale range -30inHg~250PSI -76cmHg~17.5kg/cm². Screw-on gauge screen, built-in calibration screw, no-flutter pointer, metal 2-3/4" big dial, color coded scale to indicate pressure index for R134A (Please note, this AC charge tool is not used for R12 R22), Celsius unit. |
R134A QUICK COUPLERBrass R134A low pressure side straight quick coupler, features with quick interface, accurate snap-on push to lock, anti-slip knurled grip ring, internal ball bearings, 1/4" male flare connector with dust cap. |
R134A REFRIGERANT CAN TAP VALVEBrass can tap with 1/2" ACME female thread interface, can screw to fix on 1/2" ACME male thread of refrigerant bottle opening. Self-piercing type R134A can tap, with T type knob and internal pin with sharp tip, easy to operate. |
PREMIUM REFRIGERANT CHARGE HOSERubber nylon resin material hoses, anti-corrosion, low fluid resistance, high bearing pressure, ensure durability and good air sealing. Max working pressure is 500PSI and burst pressure is upto 2500PSI. |
HOW TO USE
Measure Pressure
- 1. Start the car, open AC to MAX.
- 2. Clockwise twist T handle to close can tap.
- 3. Connect the quick coupler to the car AC suction service port to measure the pressure.
Charge Refrigerant
- 1. Start the car, open AC to MAX.
- 2. Anticlockwise twist T handle to retract the internal pin, screw the can tap on the R134a can.
- 3. Connect the quick coupler to the hose connector and the car AC suction service port.
- 4. Clockwise twist T handle to pierce R134a can, and then anticlockwise twist T handle to retract the internal pin, to connect the R134a can and the AC, for charging refrigerant.
- 5. After charging, clockwise twist T handle to close can tap, turn off the vehicle and the AC system.
- 6. Carefully disconnect the coupler from the AC system, the hoses may contain residual refrigerant.
SPECIFICATION
1. Total length: 23" (left short one for can tap is 8", right is 15" for R134A quick coupler to connect).
2. Material: Rubber nylon resin hose and brass fittings.
3. Scale range: -30inHg~250PSI, -76cmHg~17.5kg/cm².
FITMENT TYPE
Air conditioning: fits for all models with R134A suction service port.
Refrigerant can: Can with 1/2" ACME male thread bottle opening, self-piercing type.
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|
| AC Charge Hose with Gauge, JT014S1 | AC Charge Hose with Gauge, JT014S2 | AC Charge Hose with Gauge, JT014S3 | AC Charge Hose with Gauge, JT014S4 | 3 Way AC Manifold Gauge, JT009S3 | R134A Adjustable Quick Couplers, JT011S1 | |
| Application | R134A | R134A | R12, R22, R134A | R12, R22, R134A | R12, R22, R134A, R404A | R134A |
| Length | Total 19" | Total 23" | Total 42" | Total 42" | 3PCS 3FT hoses | |
| Gauge | 0-100psi, 0-7kg/cm² | -30inHg~250psi, -76cmHg~17.5kg/cm² | -30inHg~250psi, -76cmHg~17.5kg/cm² | -30inHg~250psi, -76cmHg~17.5kg/cm² | 3 way manifold gauge with dual dials, -30inHg~250psi & 0~500psi | |
| R134A Quick Coupler | One for low pressure side. Elbow, non-detachable | One for low pressure side. Straight, detachable | One for low pressure side. Straight, detachable | One for low pressure side. Straight, detachable | Two for low and high pressure sides. Straight, detachable | Two for low and high pressure sides. Adjustable quick coupler |
| R134A Can Tap | Non-detachable. Self-piercing type | Non-detachable. Self-piercing type | Detachable. Self-piercing type | Detachable. Self-piercing type | Detachable. Self-piercing type | |
| 1/4" Female Fittings on Hose | Only one on the longer hose side | Two on both sides of hoses | Two on both sides of hoses | Two on both sides of each hose, total 6PCS | ||
| Tank Adapter | 1/4" male to 1/2" female | 1/4" male to 1/2" female | ||||
| Other | Hose valve core repair kit |
