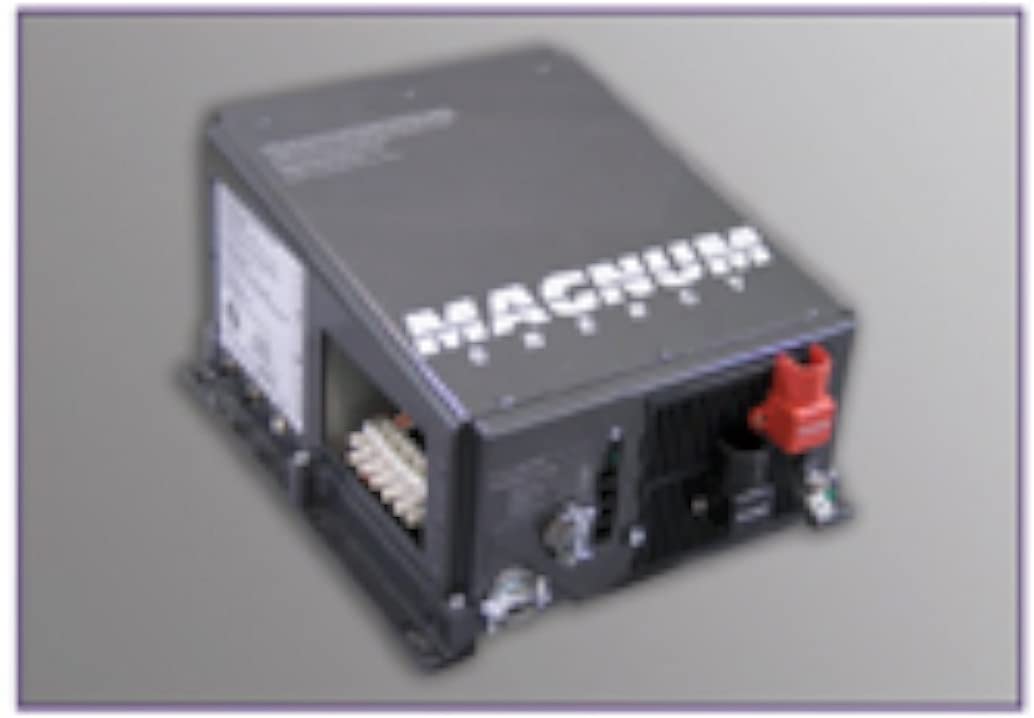

Magnum Energy ME2012-20B ME-Series 2000W 12VDC Modified Sine Inverter/100 Amp PFC Charger/2-20A AC Breakers, Easy-to-install, Versatile mounting, Multiple ports, Convenient switches, Expanded transfer relay
The ME Series Inverter/Charger from Magnum Energy is a modified sine wave inverter designed specifically for rugged mobile applications. The ME Series is powerful, easy-to-use, and best of all, cost effective.
Key Features
- Versatile mounting: Mount the ME Series on a shelf, bulkhead, or even upside down
- Accessible design: The extra large AC access cover with terminal screw block and 360° DC connection terminals with covers make this inverter more accessible when it needs to be
- Convenient switches: The ME Series comes with an on/off inverter-mounted switch with an easy-toread LED indicator
- Expanded transfer relay: 60 Amp transfer service is available, and can be wired in three ways, including single in/single out, single in/dual out, or dual in/dual out
Specifications
- Output Power: 2,000W
- Peak Watts: 3,700W
- Output Voltage: 120 VAC
- Output Peak: 60A
- Output Current: 17A
- Output Frequency: 60 Hz
- Input Voltage: 12
- Continuous Output Amps: 17
- Operating Temp: -4°F to 140°F
- Efficiency: 95%
- Weight: 37 lbs
- Dimensions: 13.75” x 12.65” x 8.0”
- UL Certified: Yes
- Phase: Single
- Topology: Low Frequency
- Input Battery Voltage Range: 9-16
