Mechanical Spec
Overall Length (tip to tip): 5"(123MM)
Weight:12.6oz (360g)
Length of Pump Body Metal Case: 3 1/8"(80mm)
Pump Body Diameter: 1 1/2"(38mm)
Inlet Fitting: 7.7mm ID, 11.0mm OD
Outlet Fitting: 5/16" hose clamp
Features:
· Composite Turbine Impeller design brings quiet operation
· Offset Inlet easily to install
· 39mm diameter in tank fuel pump fits most applications
· Designed for high output naturally aspirated and forced induction EFI vehicles
· For gasoline vehicles (pump life may be diminished when used with E85 fuel)

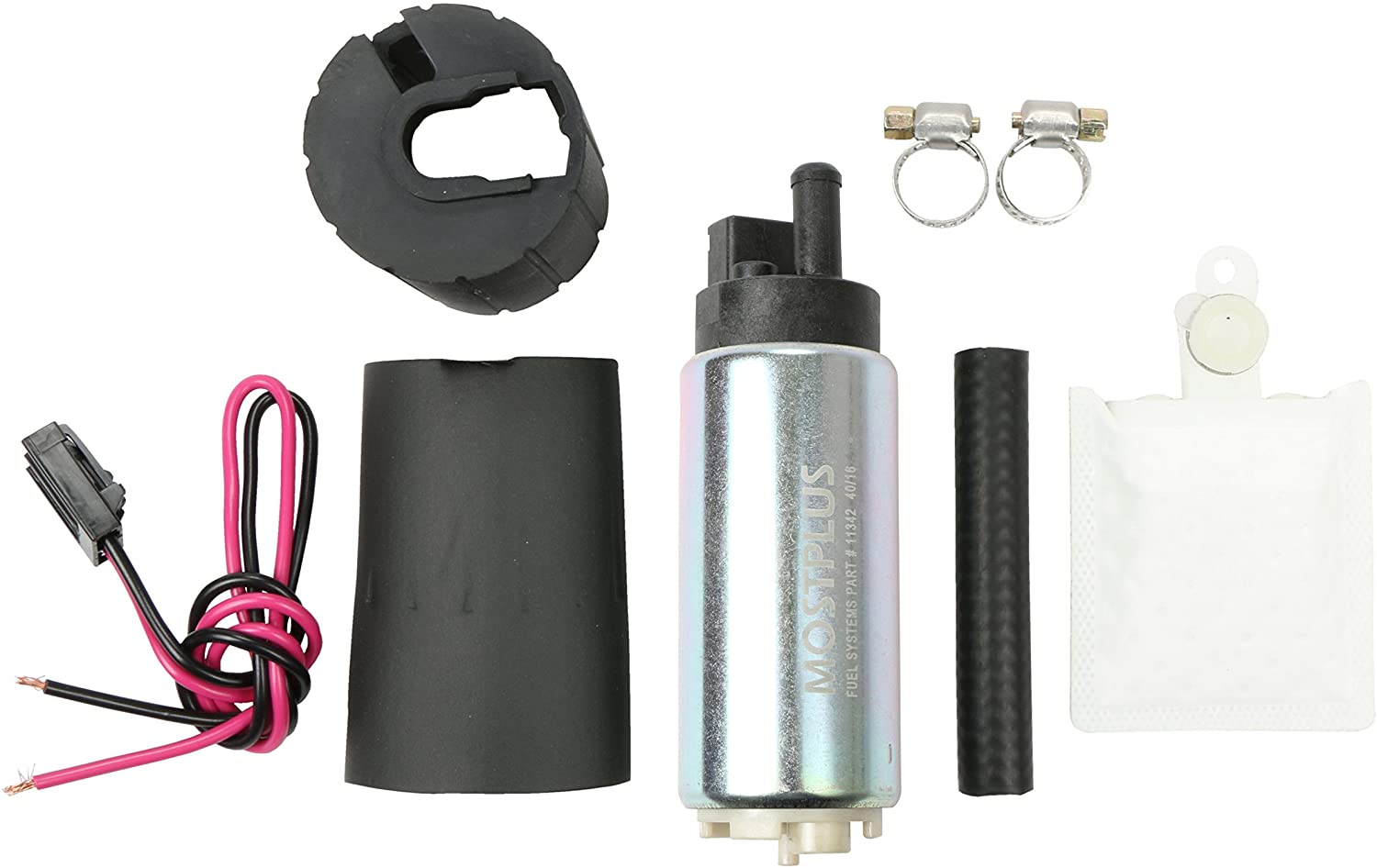

· Typical & complete kits exactly same as above title picture showed.
· 1 x Fuel Strainer: 30 micro gradient density material
· 1 x Universal connector
· 1 x Sponge Sleeve
· 1 x Rubber harness
· 1 x Rubber hose
· 2 x Stainless Steel Clamps
Techinal Data
· Min Voltage Input:6V
· Max Voltage Input:18V
· PRV Activation:0-100PSI
· Flow Rate: 255LPH/43PSI(13.5V)
· Current(43PSI):<13A(13.5V)
· Horsepower Capabilities: Up to 700Hp for naturally aspirated engines and 600Hp for turbo/supercharged ones separately.
