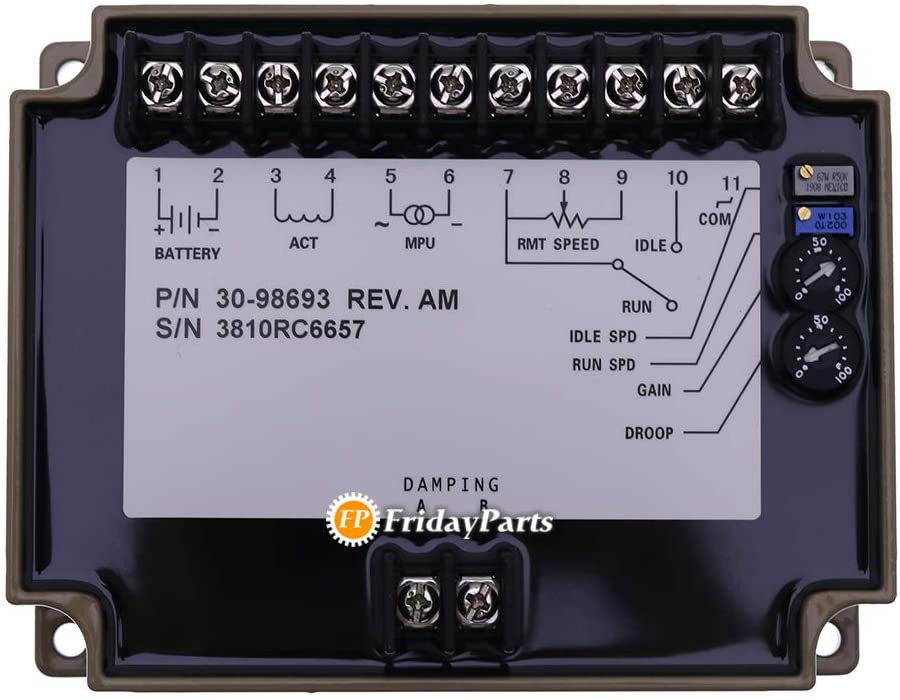

Description:
Operating Voltage: 12 or 24 volts ±20%
Steady State Speed Band: ±0.25%
Ambient Operating Temperature: -40℃ to +85℃
Temperature Stability: Better than ±0.5% over temperatures of -40℃ to +125℃
Mechanical Vibration: Withstands the following vibration without failure or degraded performance: 0.06 inch double amplitude at 5 to 18 Hz; 1 G at 18 to 30 Hz Connections: Terminal strip
Enclosure: Die cast aluminum
Weight: 635 grams (1.4 lbs.) Magnetic Pickup Frequency Range: 2500 - 5000 Hz
Output Signal: PWM current to 6A at max.
Actuator Compatibility: EFC3408326, DYNA7000
