TRITDT P/N.
- TTT309-02051-031
Application
- Available use on Garrett GT25R, GT28R, GT30R Turbochargers ( GT25, GT28, GT30 ) and replacement for Subaru turbos
- Available use on Garrett GTX28R, GTX30R and some of GTX35R, GTX40R Gen I II 1 2 Series Turbochargers with bolt type compressor housing
- Turbine Housing with Wastegated 5 Bolt Outlet
- Compressor Housing with 0.60 A/R
- Turbo OE No. 836026-5005S, 836026-5013S, 836026-5014S, 836026-5020S, 836026-5021S, 836028-5003S
- Assembly Kit OE No. 856800-5003S, 856800-5004S, 856800-5007S, 856800-5008S, 856801-5019S, 856801-5020S, 856801-5021S, 856801-5040S, 856801-5041S, 856801-5042S
- Reference Turbine OE No. 827690-0003, 827690-0004, 827690-0005, 771300-0004, 771300-0005, 771300-0006
- New Bracket fits p/n: 773151-0002, 773151-2
Situation
- Brand New
Spec.
- 140mm straight rod is installed by default and the length between the back of actuator head and the rod end is 94.0mm as picture
- 140mm and 120mm bent rods are attached and the length between the back of actuator head and the rod end should be 83.5mm and 63.5mm as pictures
- End fitting length as picture
- 6.0mm central hole
- Rod end thread pitch M6 x 0.75mm

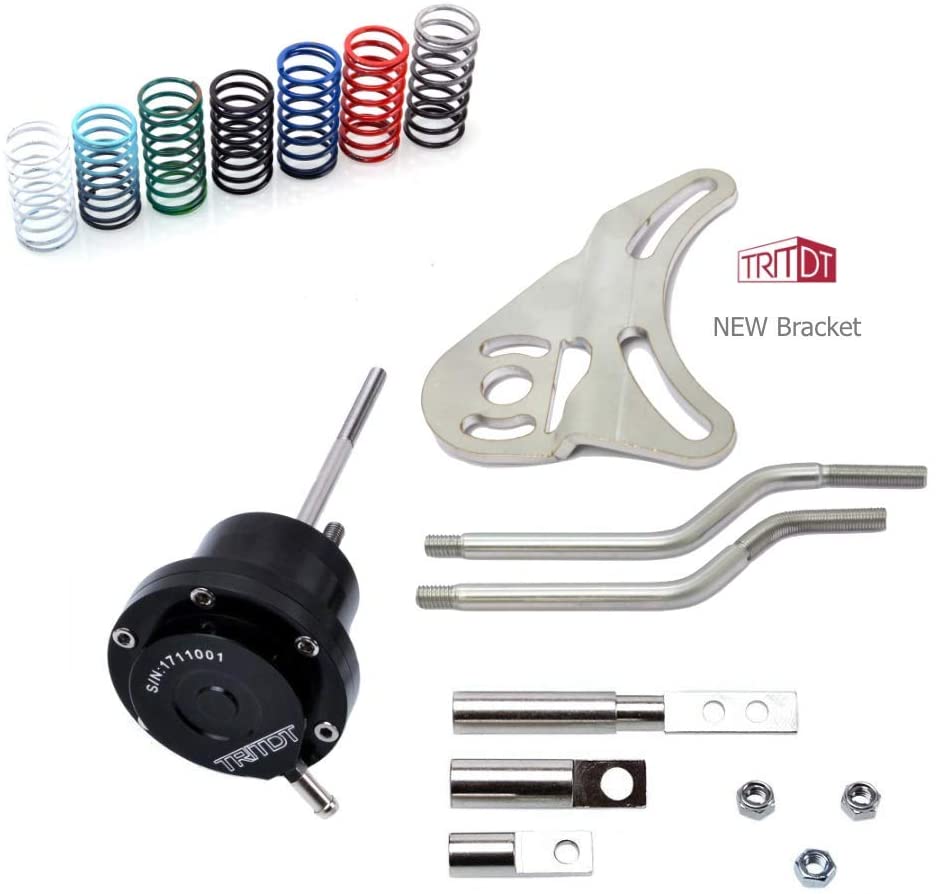

Kit Includes
- 1 x Adjustable actuator body and 1.0 bar spring installed
- 7 x Springs and the Actuator all for you
- 1 x NEW Bracket
- 3 x Rod (2 bent and 1 straight)
- 3 x End fitting
- 3 x Bolt
Supplier
- TRITDT
Warranty
- One year
