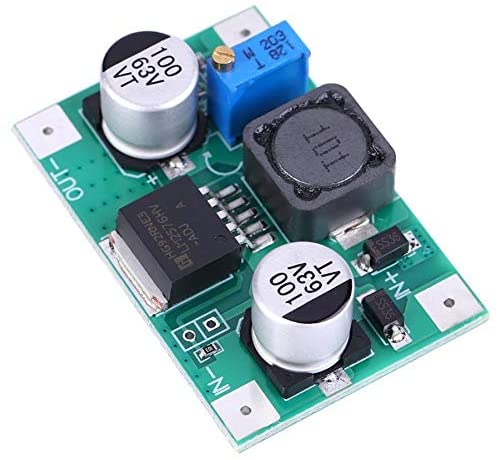

ZEFS--ESD Electronic Module DC-DC Input 5-60V to Output 1.25-26V Adjustable Step-Down Module Frequency Converter
ZEFS--ESD Electronic Module DC-DC Input 5-60V to Output 1.25-26V Adjustable Step-Down Module Frequency Converter ZEFS--ESD Electronic Module DC-DC Input 5-60V to Output 1.25-26V Adjustable Step-Down Module Frequency Converter ZEFS--ESD Electronic Module DC-DC Input 5-60V to Output 1.25-26V Adjustable Step-Down Module Frequency Converter ZEFS--ESD Electronic Module DC-DC Input 5-60V to Output 1.25-26V Adjustable Step-Down Module Frequency Converter ZEFS--ESD Electronic Module DC-DC Input 5-60V to Output 1.25-26V Adjustable Step-Down Module Frequency Converter ZEFS--ESD Electronic Module DC-DC Input 5-60V to Output 1.25-26V Adjustable Step-Down Module Frequency Converter

ZEFS--ESD Electronic Module DC-DC Input 5-60V to Output 1.25-26V Adjustable Step-Down Module Frequency Converter

: In stock

:

: PartLimit

$27.99 $55.99

Specification:Input Voltage Range: 5V-60V (Rated Suggestions Below 50V Reliable)Output Voltage Range: 1.25V-26VOutput Current: 3A(Max)Continuous Working Current: 1.2AConversion Efficiency: Up To 92% Working Frequency: 52KhzRectifier: Non-Synchronous RectificationModule Properties: Non-Isolated...

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Category:

Tags:

Specification:

Input Voltage Range: 5V-60V (Rated Suggestions Below 50V Reliable)

Output Voltage Range: 1.25V-26V

Output Current: 3A(Max)

Continuous Working Current: 1.2A

Conversion Efficiency: Up To 92%

Working Frequency: 52Khz

Rectifier: Non-Synchronous Rectification

Module Properties: Non-Isolated Step-Down Module (Buck)

Short Circuit Protection: Current Limiting, Since The Recovery

Operating Temperature: Industrial Grade (-40℃ To +85℃) (Output Power 10W Or Less)

Full Load Temperature Rise: 40℃

Load Regulation: ±0.5%

Voltage Regulation: ±0.5%

Dynamic Response Speed: 5% 200us

Weight: Approx. 12g / 0.4oz

Size: Approx. 4.5 * 30 * 1.2cm / 1.8 * 11.8 * 0.5in

Package List:

1 * Step-down Module
