Replace OE Part Number:
166-0820 ,166-0772

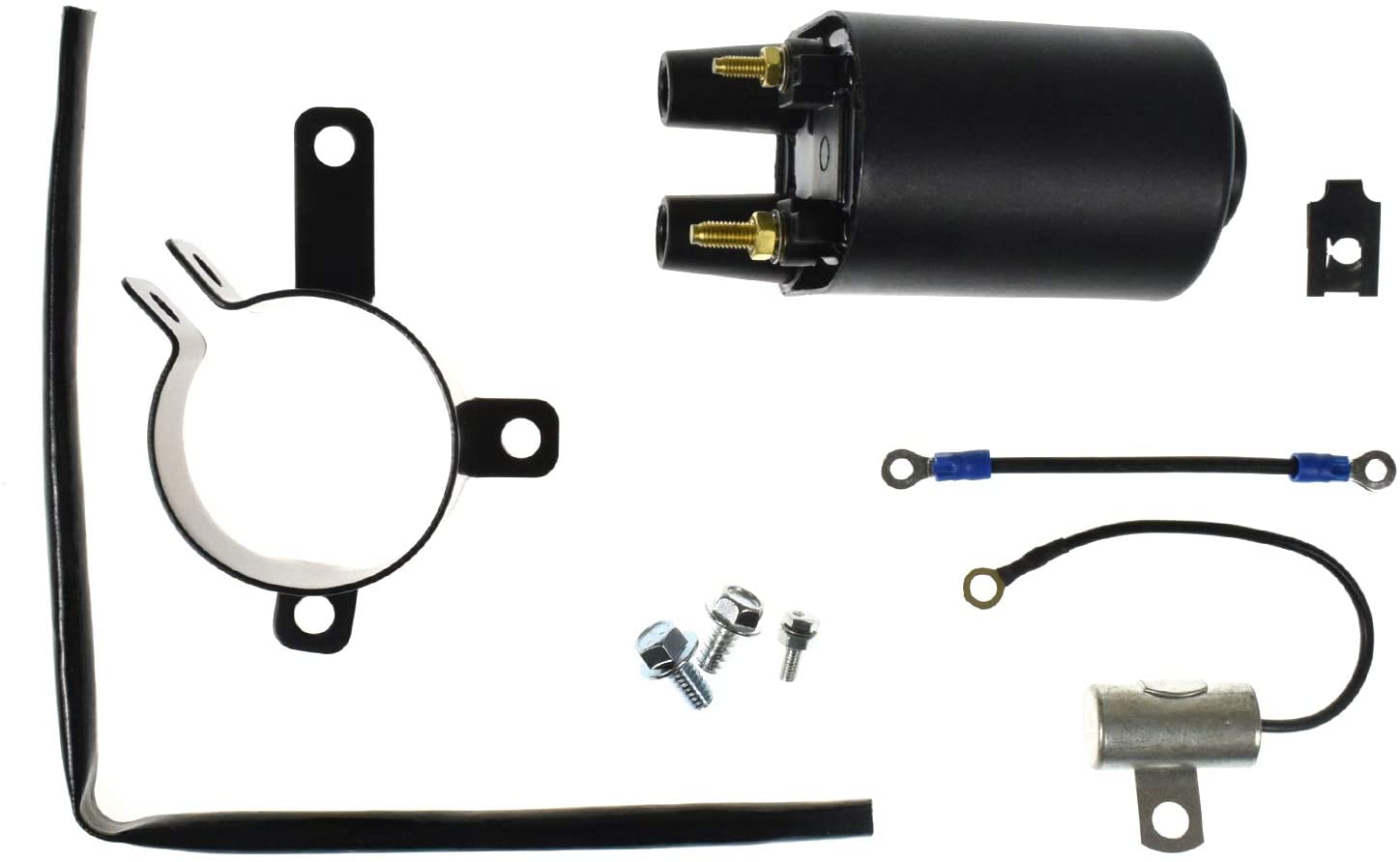

Ignition Coil 166-0772 for Onan Points Models BF B43 B48 NHC CCK Replaces166-0648 166-0772 166-0804 Engine New Ignition Coil He166-0761 He541-0522 Generator Carburetor
Specifications: 166-0820 same as 541-0522 solid state only 166-0804 same as 166-0772 points only
For Onan 166-0772 166-0804 166-0648 Engine Ignition Coil
For Onan Points Models BF, BFA, BG, BGA, BGE, B43E, B43G, B43M, B48G, CCK, CCKA, CCKB, NHA, NHB, NHC, NHE, NHP, N52M
A. (166-0820)
Primary Resistance: 3.12Ω
Primary Inductance: 6.67mH
Secondary Resistance: 20.5KΩ
Secondary Inductance: 41.30H
B. (166-0804)
Primary Resistance: 4.25Ω
Primary Inductance: 9.48mH
Secondary Resistance: 37.85KΩ
Secondary Inductance: 59.96H
Service:
1.We offer 2 Year warranty.
2.Please contact with any questions.Return for any reason if not satisfied.We will reply to your message within 24 hours, thanks.
