Product Description
- Note: Because the maximum rated coil voltage of the relay is 14 V DC, the voltage value we marked on the relay is 14 V DC, which can be used for 12 V DC circuits. The product you received is correct, please do not worry.
- Easy to install - no instructions are included in the package.
- We attach great importance to the support you get before and after sales, so as to establish a long-term cooperative relationship.
- We don’t just hand you a box.
Product Description

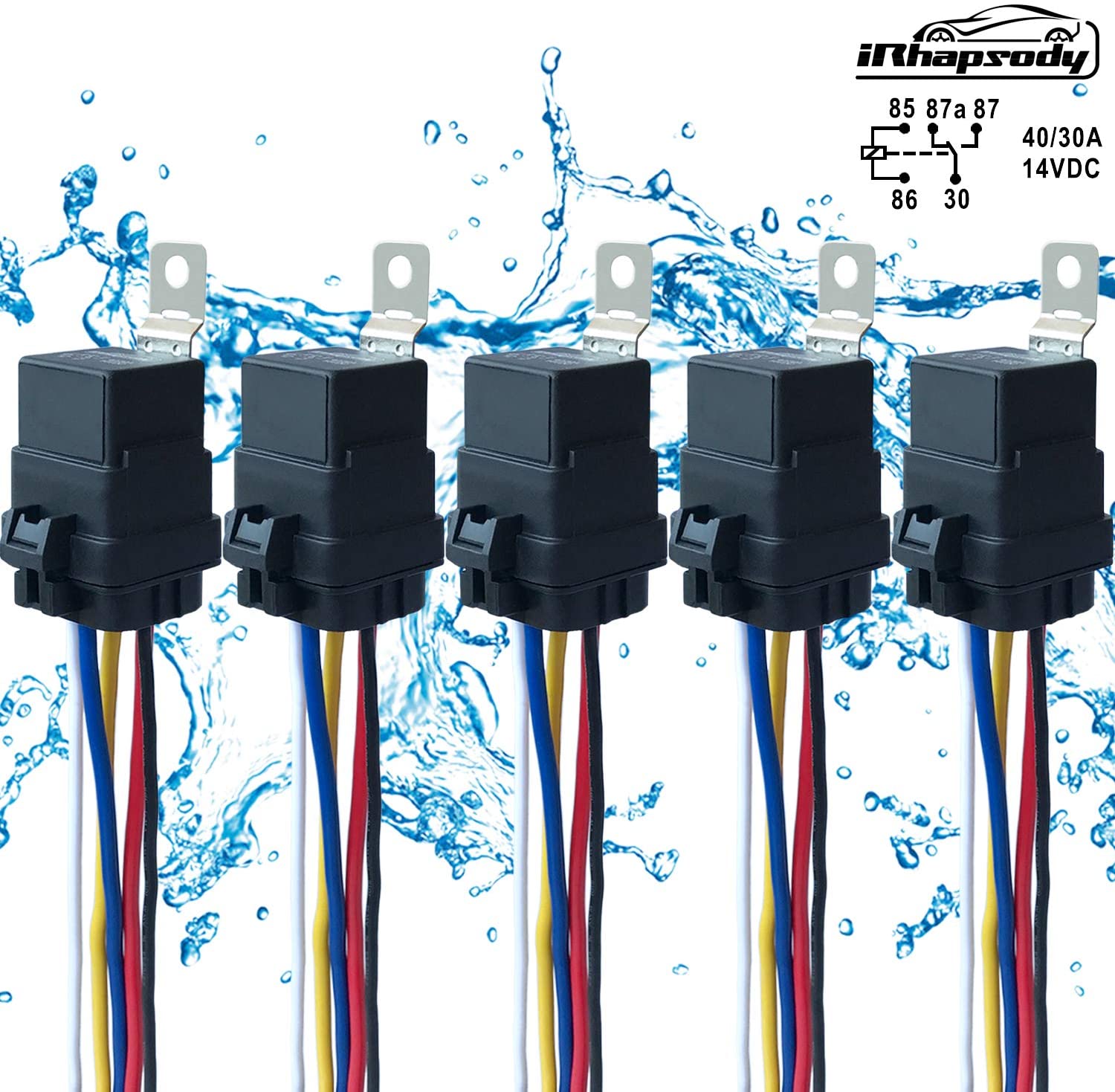

- Nominal Coil Voltage: 12 V DC
- Coil Power: 1.8 W
- Coil Resistance: 80 Ω
- Must Operate Voltage: 6~8 V DC
- Must Release Voltage: 0.6~3.6 V DC
- Maximum Applied Voltage: 15.6 V DC
- Contact Ratings: NO 40A 14V DC
- Contact Resistance: 100mMAX (at6VDC 1A)
- Max Switching Current: 40A
- Max Switching Power: 560 W
- 12AWG Tinned Copper Wire: Pin 87a Yellow
- 12AWG Tinned Copper Wire: Pin 87 Blue
- 12AWG Tinned Copper Wire: Pin 30 Red
- 16AWG Tinned Copper Wire: Pin 85 Black
- 16AWG Tinned Copper Wire: Pin 86 White
|
|
|
|
|
|---|---|---|---|
Tinned copper wires
|
Reliable relay construction
|
Clearly mark all pins
|
Sealed & waterproof
|
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|
| 40/30 AMP WATERPROOF RELAY | 40/30 AMP WATERPROOF RELAY | 80/60 AMP WATERPROOF RELAY | 40/30 AMP BOSCH STYLE RELAY | 40/30 AMP BOSCH STYLE RELAY | |
| QUANTITY | 1 | 5 | 5 | 12 | 6 |
| WATERPROOF | ✓ | ✓ | ✓ | ||
| WIRE GAUGE | 12AWG & 16AWG | 12AWG & 16AWG | 12AWG & 16AWG | 12AWG & 16AWG | 12AWG & 16AWG |
| 5 Pin, SPDT | 5 Pin, SPDT | 5 Pin, SPDT | 5 Pin, SPDT | 4 Pin, SPST |
