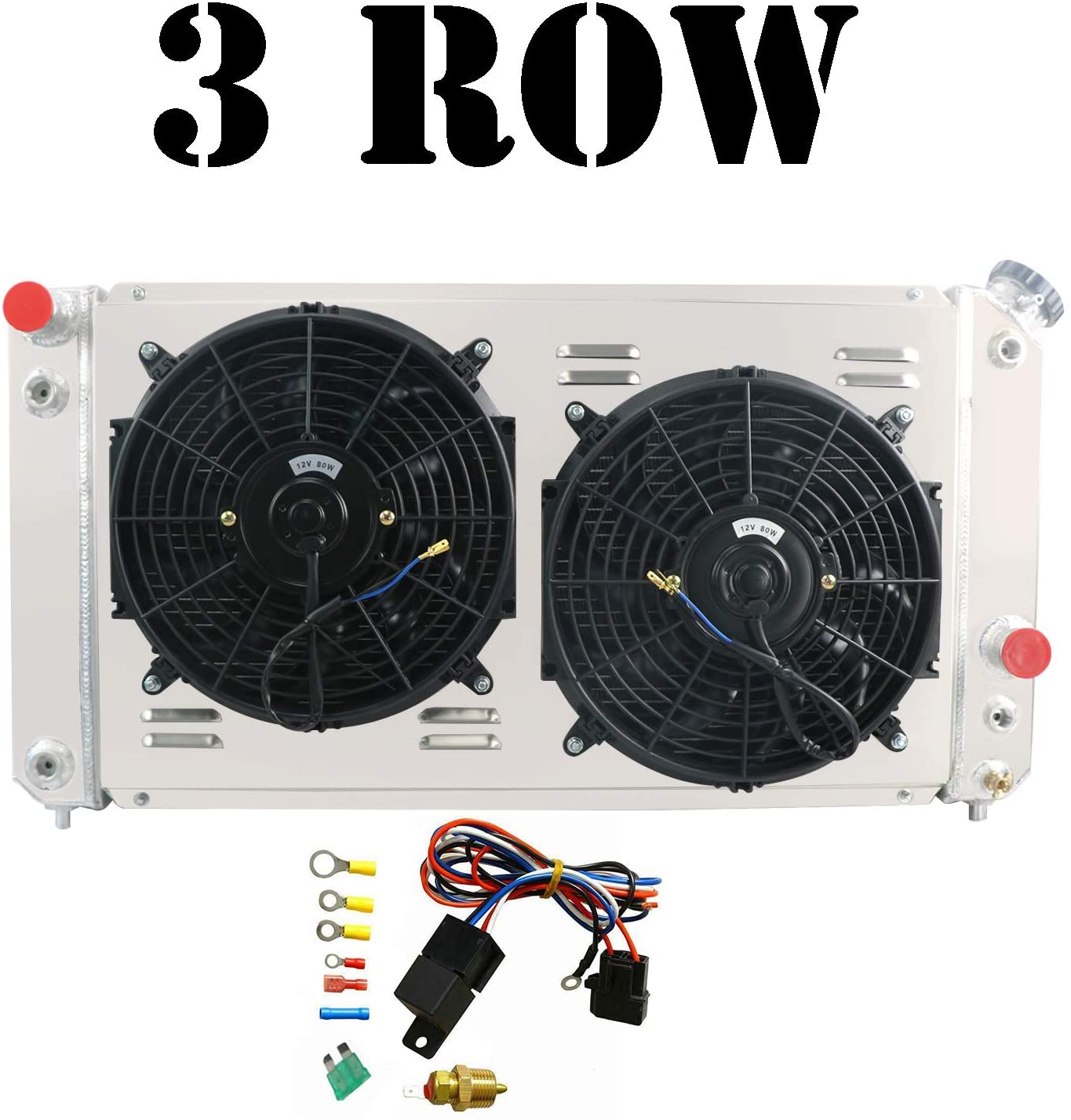

THIS LISTING INCLUDING THE RADIATOR + SHROUD + 2X12" FANS +Thermostat Kits !!!
Radiator Size:
Row: 3 Row Core
Material: Full Aluminium
Radiator Cap: included
Core and Tank: All Aluminum
Core Dimensions: 14.88" H x 26.30" W x 1.73" T
Overall Dimensions: 18" H x 32.52" W x 3.82" T
Upper Inlet: 1-3/8"" located on the Driver side
Lower Outlet: 1-1/2"" located on the Passenger side
Trans Cooler Included: 1/2"" 20 STRAIGHT THREAD G1/4
Mount Type: Pin
Transmission: Automatic and Manual.
Vehicle Fitment :
FOR 1996-2005 Chevrolet Blazer S10 TRUCK PICKUP BLAZER 4.3L V6
FOR 1996-2001 Oldsmobile Bravada
FOR 1996-2005 GMC Jimmy
FOR Chevrolet Blazer GMC S/T Series Pickups
FOR 2000-2004 GMC Sonoma
FANS:
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 12.050”
Thickness (in): 2.500”
Number of Blades: 10 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation
Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.
Probe typically threads into radiator, water outlet or manifold.
