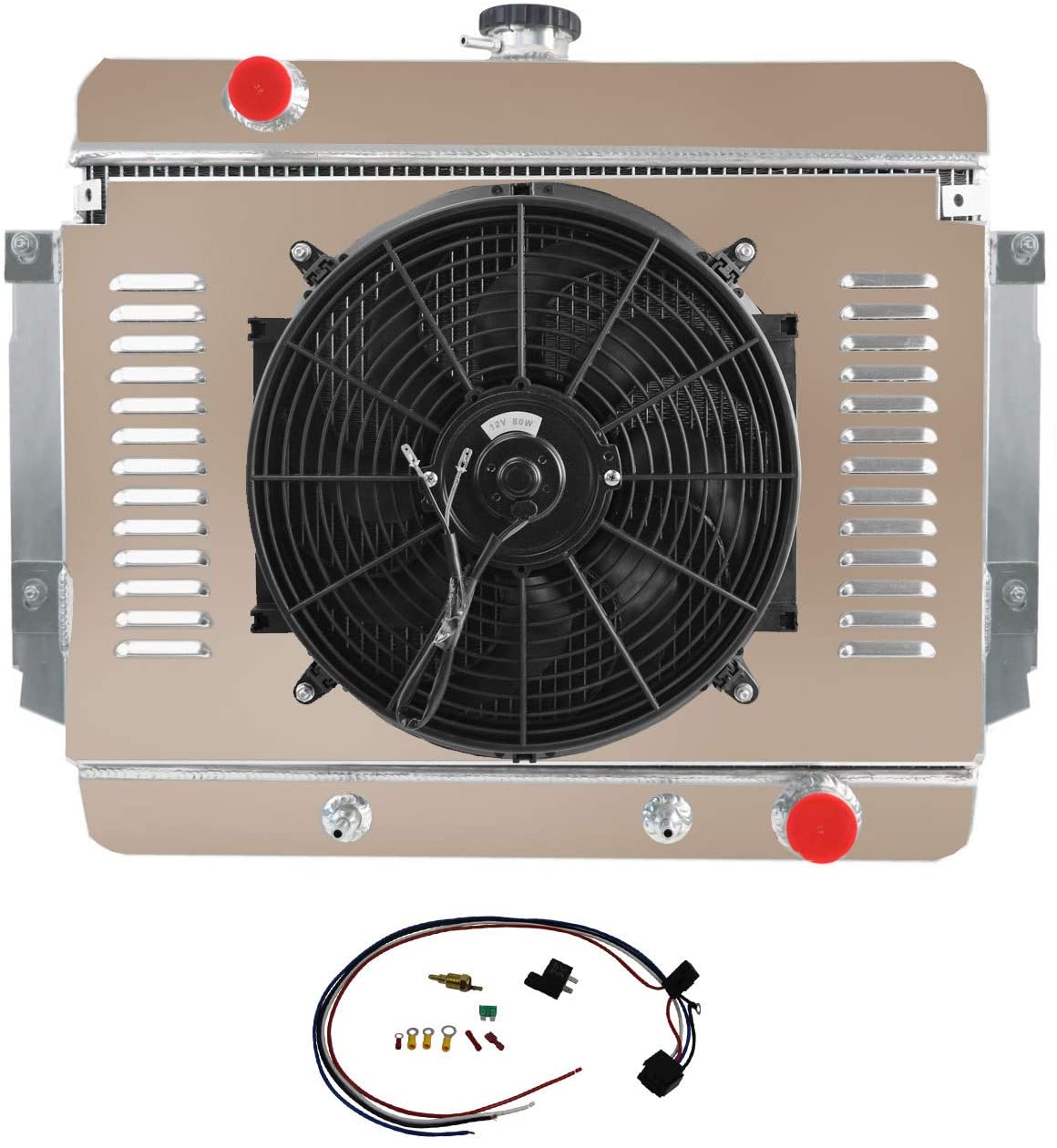

THIS LISTING INCLUDING THE RADIATOR AND SHROUD AND ONE 14" FAN AND Thermostat Kits!
Radiator Size:
Row: 4 Row Core
Material: Full Aluminium
Radiator Cap: included
Core and Tank: All Aluminum
Core Dimensions: 15 1/2'' x 23 1/2'' x 2 1/4''
Overall Dimensions: 22'' x 28 1/4'' Including Brackets
Upper inlet: 1 1/2" located on driver side.
Lower outlet: 1 3/4" located on passenger side.
Auto trans cooler: Included
Vehicle Fitment:
For 1969-1970 Chevy Impala/Caprice/Bel Air/Brookwood/Kingswood
FOR 69 70 Chevy Impala Chevrolet
For Chevy Impala 69-70
For Chevy Kingswood 69-70
For Chevy Caprice 69-70
For Chevy Brookwood 69-70
For Chevy BEL AIR 69-70
For Chevy Biscayne 69-70
FANS:
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 14.050”
Thickness (in): 2.500”
Number of Blades: 8 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation
Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.
Probe typically threads into radiator, water outlet or manifold.
