Product Description

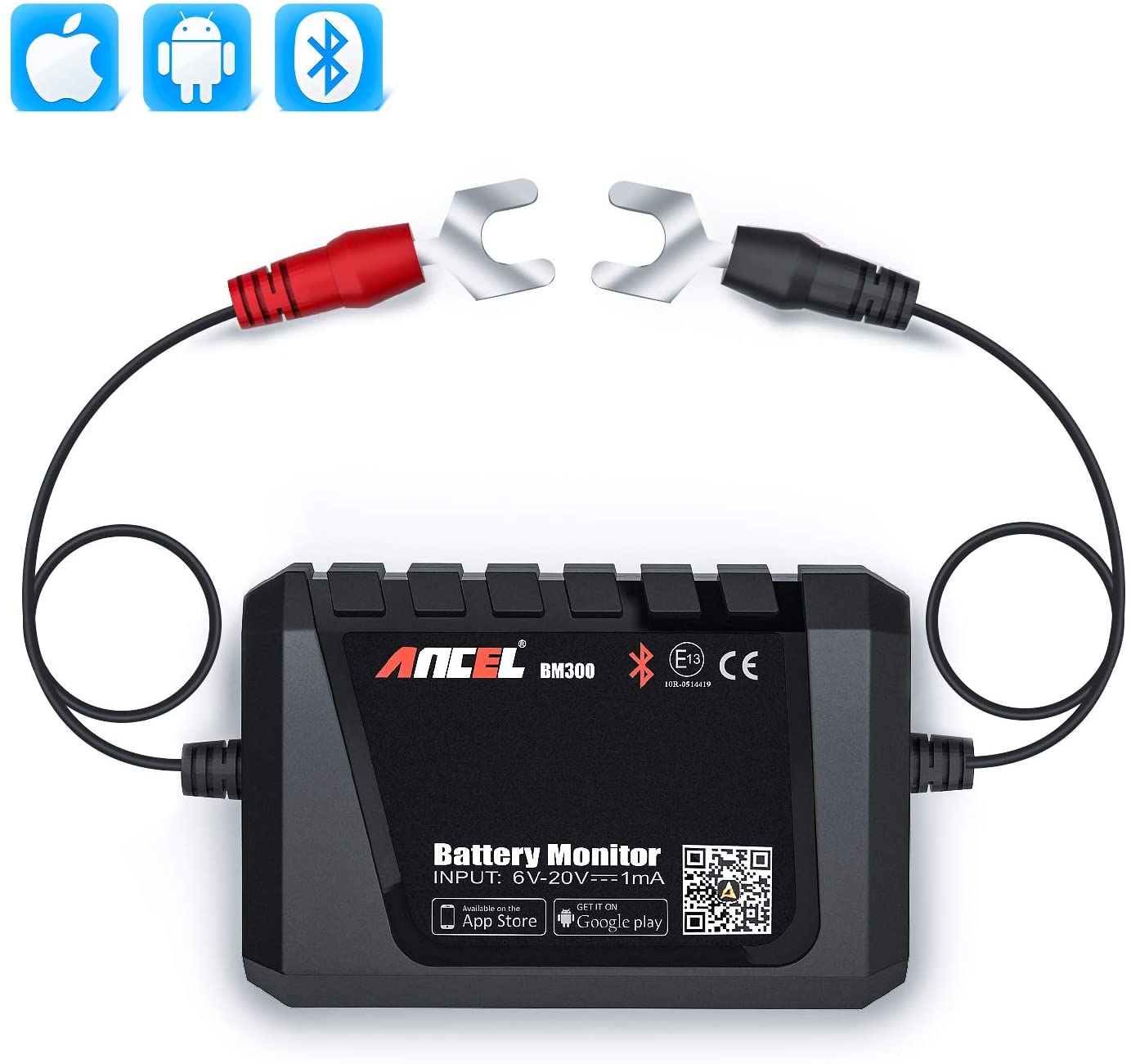

ANCEL BM300 Bluetooth Battery Monitor
ANCEL BM300 is designed for all 12v batteries, which supports voltage test, cranking test, charging test and trip recording via Bluetooth connection by App “ANCEL Battery Monitor”. And it is compatible for vehicles, motorcycles, boats, SUVs, etc.
With the Ancel app, it will connect with your phone automatically in milliseconds. So you have no need to press any annoying buttons near the car. You can just simply go back to your seat and do the tests on your phone, which will save you lots of time and energy!
Reverse-Polarity Protection
Built-in electrical overload circuit breaker (Short-circuit Protection) can automatically shut off the circuit if the current is too high.
Built-in Reverse-Polarity Protection will prevent damage to power supplies and electronic circuits in the event of a reverse voltage applied at the input or output terminals.
Resistant to High Temperatures
Made of fireproof material, the wireless battery monitor is very much resistant to high temperatures.
Its operating temperature is -40℉~ 194℉.
Analyze Any 12V Batteries
Compatible with all 12-volt vehicle batteries such as Forklift, hybird cars, SUV, Pickup, Boat, RV, Motorcycles, travel Trailers, the bluetooth battery tester has 6~20V Input Voltage.
Its Voltage Accuracy(9~16v) is ±0.03V.
Note: The product should not exceed the specified voltage range (6-20V). Excessive input voltage may damage the device.
Bluetooth 4.0 for IOS/Android
The car battery meter is connected via Bluetooth 4.0 for IOS/Android, whose transmission range can be maximum 30 feet (10m) with no physical obstacles in the scope.
The App is “ANCEL Battery Monitor” ,which can be searched by "BM300".
Note:
- App requires smart phones with Android 4.3 and higher, iPhone 4S and higher.
- The app can connect with the battery automatically within 30 feet range. You just need to start the app, and there is no password needed.
How to Install the Product
I. Install the Battery Monitor to the Vehicle Battery
1. Connect the terminals to your batteries with the red terminal going to the positive pole and the black terminal to the negative pole.
2. Keep the BM300 body fixed by velcro in a convenient location where the Bluetooth transmission signal is not blocked. ( Clean the surface before pasting)
II. 4.0 App Installation
1. Search “BM300” on App Store or Google Play to download App.
2. Or scan the QR code printed on the package or product.
III.App Operation
1.Turn on your Bluetooth after launching the App.
2 Allow App access to notifications, and you will receive notifications of the car battery/cranking system/charging system data and problem detection in time.
3 Allow App access to your location, once your phone enters the range of the bluetooth, you will be notified even the App is not running.
|
|
|
|
|
|---|---|---|---|
Voltage testA slider appears when you tap on the Historical Voltage Graph, displaying the test time and the battery voltage. Tap on date icon in the upper right and enter a calender, and date in red means abnormal voltage on the day(s). |
Charging testClick “Start Testing”, it will automatically test idle condition voltage, then jump to Second Step. Increases RPM as below and hold for 3-5 seconds until the High RPM Voltage Test is completed to see the charging voltage status. 4cyl - 2500/min 6cyl - 2000/min 8cyl - 1600/min |
Cranking testWhen the engine starts, the device will test the cranking system automatically and store the test result. Usually, it’s normal if the cranking voltage is higher than 9.6V or vice versa. If the voltage is too low, it might result from the aging of battery, low power or starter fault, etc. Green means normal while red means abnormal. |
Trip recordingClick the Search button to view driving records via selecting date. Then Date separator bar of a certain day and Start, Running and End time of each driving will be showed. |
