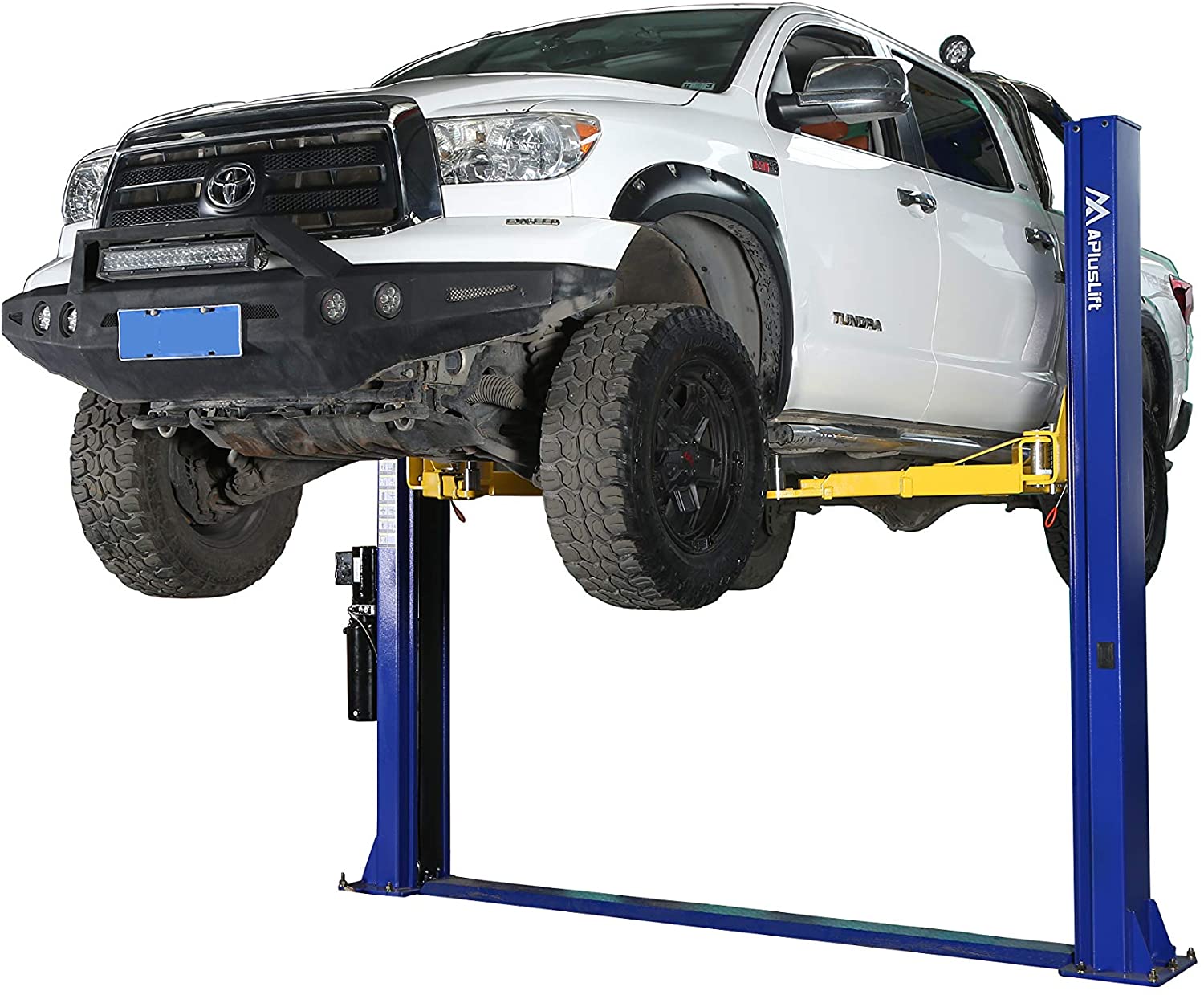

APlusLift HW-10KBP-A 10,000LB Two Post Floor Plate Auto Hoist Car Lift with Combo (Symmetric and Asymmetric) Arms / 24 Months Parts Warranty

APlusLift HW-10KBP-A 10,000LB Two Post Floor Plate Auto Hoist Car Lift with Combo (Symmetric and Asymmetric) Arms / 24 Months Parts Warranty

: In stock

:

: PartLimit

$2,178.99 Regular price $4,357.99

APlusLift HW-10KBP is one of the most affordable floor plate car lift (auto hoist) with 10,000 LB Heavy Duty and Strong Double "S" Column Design. Specification CE Certified...

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Tags:

APlusLift HW-10KBP is one of the most affordable floor plate car lift (auto hoist) with 10,000 LB Heavy Duty and Strong Double "S" Column Design.

Specification
  • CE Certified Lift Structure and Hydraulic System
  • Heavy Duty Design:
    • Column Steel Thickness: 13/64"
    • Carriage Steel Thickness: 15/64"
    • Arm Steel Thickness: 15/64"
    • Carriage Yoke Thickness: 5/16"
  • Driving Mode: Dual hydraulic cylinders, chain drive Voltage: 220V 60Hz
  • Combo (Symmetrical and Asymmetrical) Arm Assembly:
    • Front/Rear 3 Stage reach from 22 7/8" to 42 5/8"
    • Rear 2 Stage reach from 33 5/8" to 52 7/8"
  • Screw-in lifting pads and truck adapters included
  • Safety Mechanism:
    • Double point safety lock release
    • Automatic arm lock restraints
    • Relief valve built in power pump to prevent overloading
    • Door guards protection rubber
    • Up-limit switch to protect cylinders working stroke used in safe length scope
    • Heavy duty 3/8" diameter cable and 5" pulley that reduce high stress on synchronization process and increase cable life
    • Stiffened base plate 5/8" thickness
  • Control System:
    • Lifting operation by pressing "UP" button on motor
    • Manual lowering operation by pressing lever
    • Relief valve built in power pump to prevent overloading
    • 1 set of truck adapters included
    • Overall Height: 113 5/8"
    • Overall Width: 134 5/16"
    • Maximum Lift height with Truck Adaptor: 81"
    • Maximum Lift height without Truck Adaptor: 75"
    • Minimum Height of Arm Top: 4"
    • Drive-through width clearance: 100"
    • Time to full rise: 50 sec
    • Motor: 3 HP
  • Concrete: 6" thick at 3500 psi
  • Anchor bolts/mounting hardware included
