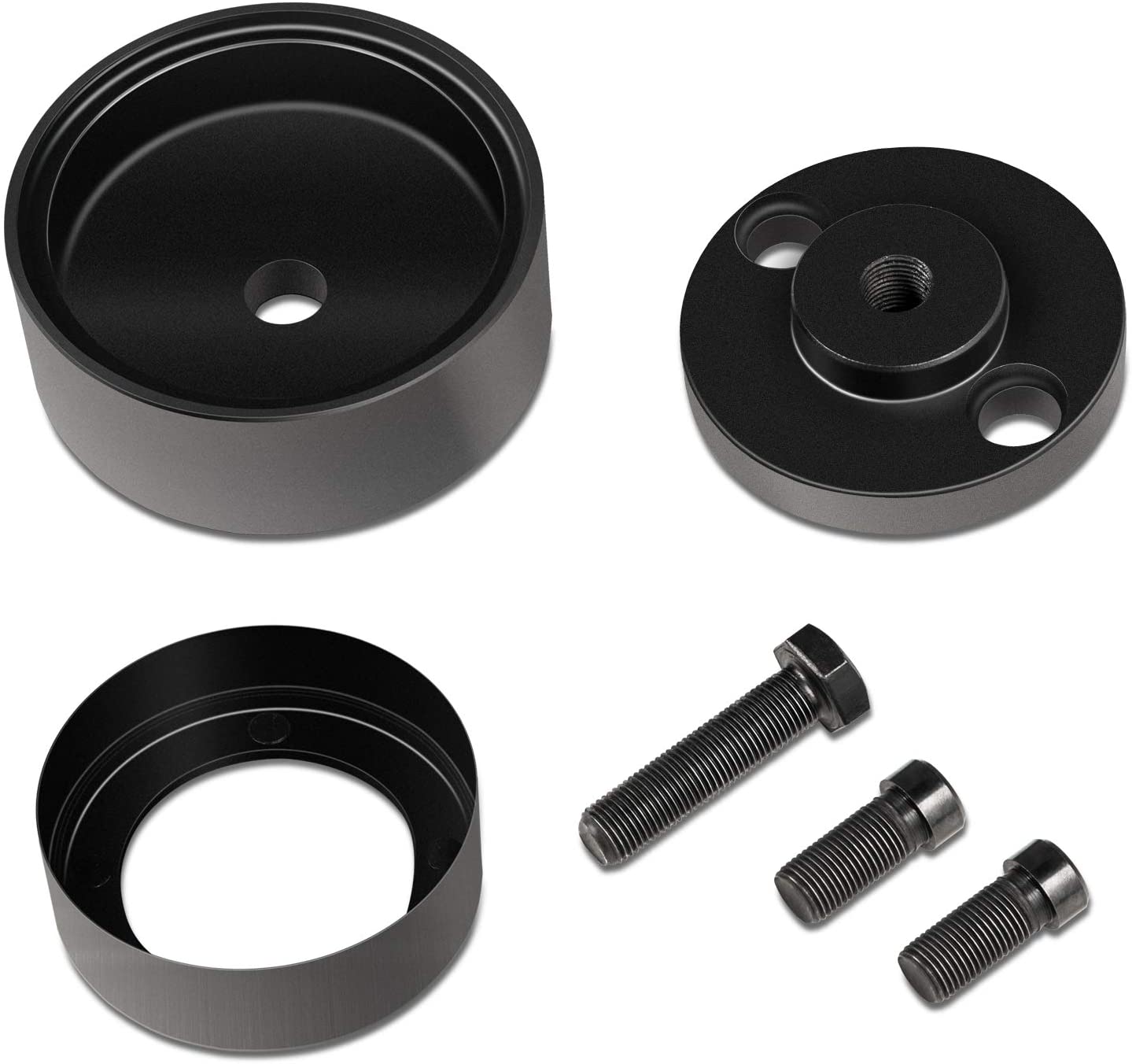

Package Includes:
1 x Installer
1 x Seal Protector
1 x Adapter
3 x Bolts
Use Guideline:
1.Remove the old rear crankshaft seal (and wear ring, if applicable), and clean the crankshaft sealing surface.
2.Attach the adapter to the crankshaft using the supplied bolts.
3.Install the new seal:
(1)Seal with Wear Sleeve
Note: If the new rear crankshaft seal includes a wear sleeve, don’t remove it. Install the seal and wear sleeve together.
A. Lightly oil the crankshaft and the adapter assembled in Step 2.
B. Place the seal and wear sleeve assembly on the adapter.
C. Place the installer over the seal/wear sleeve, and install the bolt.
(2)Seal without Wear Sleeve
A. Place the seal protector over the adapter assembled in Step 2.
B. Lightly oil the seal protector.
C. Place the seal on the seal protector.
D. Place the installer over the seal, and install the bolt.
4. Tighten the bolt on the installer to pull the seal assembly over the crankshaft and into the cylinder block.
Attention: To prevent damage to the seal, do not use air tools to pull the seal into place.
5. Remove the installer, protector, and adapter.
