Product Description

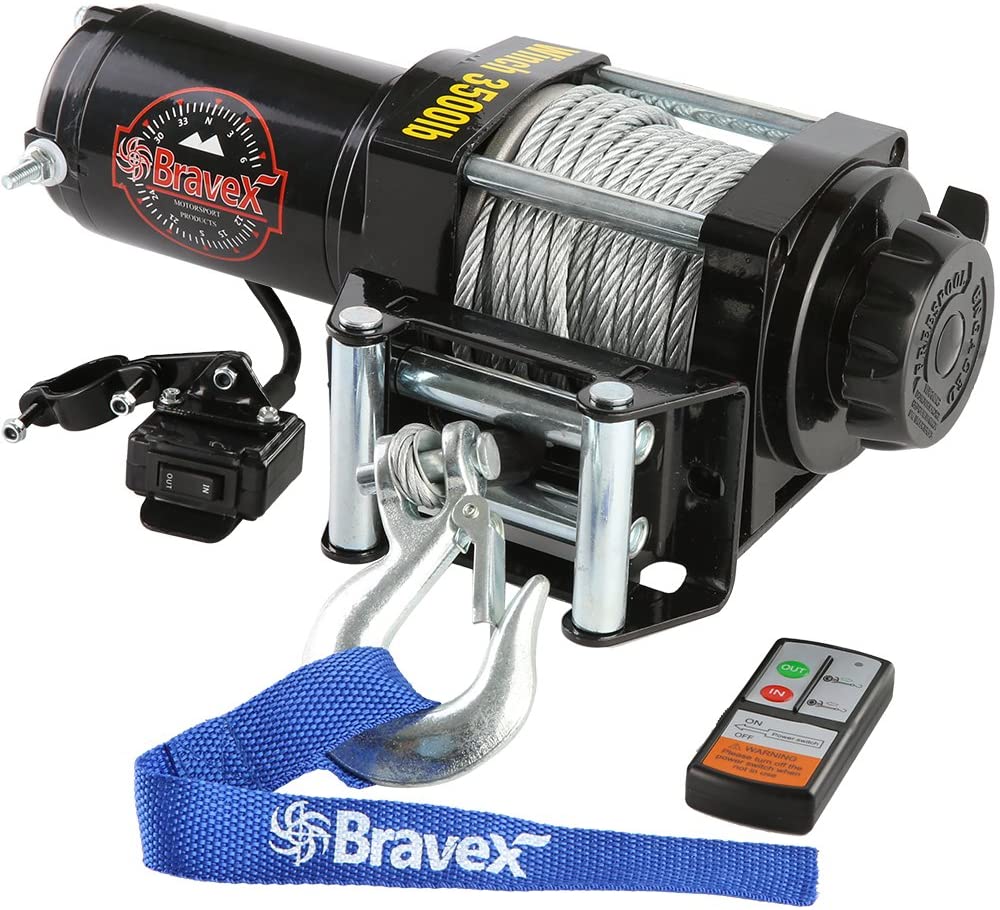

3500LB WINCH SPECIFICATIONS
Rated line pull : 3500LBS(1590kgs) single line
Motor Spec: Permanent magnet, 1.1kw/1.5hp
Gear ratio: 153:01:00
Gear train: Dierential Planetary
Cable (Dia X L): Diamete(5.3mm) Length (10m/40feet)
Control : Cored and Wireless Remote switch
Clutch: Sliding Ring Gear
Braking action: Automatic In-The-Drum
Overall dimensions(LxWxD): 12.4" X 4.72" X 4.17"
Mounting bolt pattern: 3.13'' (79.5mm) Φ9
Weight:N.W.8kg G.W.9kg
Packing Size: 41x27.5x17 cm
Applications:
Bravex products are the winches trusted by professionals and weekenders alike for everything from racing to recovery, boating to off-roading. With their sleek, compact construction, Bravex products are designed for fast, easy installation - whether portable or permanent.
|
|
|
|
|---|---|---|
Alloy steel hookStrong and durable, not decoupled. ensure safe use. Superior Roller Fairlead. Alloy steel forging, safe and stable |
Rocker Switch + Wireless remote controlRocker switch is the wired option for the user to control the operation of this winch. Wireless remote control Enable the user can safely control the winch without the danger of being tangled. |
Aviation Grade Steel Wire RopeSpecial extra wide and thick steel wire rope,Sure enough pull Clutch Ergonomic freespool control makes for a clutch that is easy to engage and disengage. |
