The Radiator is designed and specifically engineered to maximize cooling efficiency by up to 30%, boost engine functions and protect your car from overheating. The radiator features a lightweight core, and holds up to more coolant. The CoolingCare radiator showed a 20degF drop in outlet temp compared to the OEM.
Radiator Specification
Core Dimensions: 17" high x 28-1/4" wide
Core Thickness: 2 1/8''
Overall Dimensions: 19-1/4" high x 33-7/8" wide
Upper Inlet Diameter: 1-1/2"
Lower Outlet Diameter: 1-3/4"
Note the core width, if you need the 26 inch radiator, whose ASIN is B07L2RFDV8
The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place. With excellent operating temperature management, allowable levels of engine temperature are stabilized.
Fans Congfiguration
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 12.05 inch
Fan Thickness: 2.50 inch
Maximum Fan RPM: 2250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps

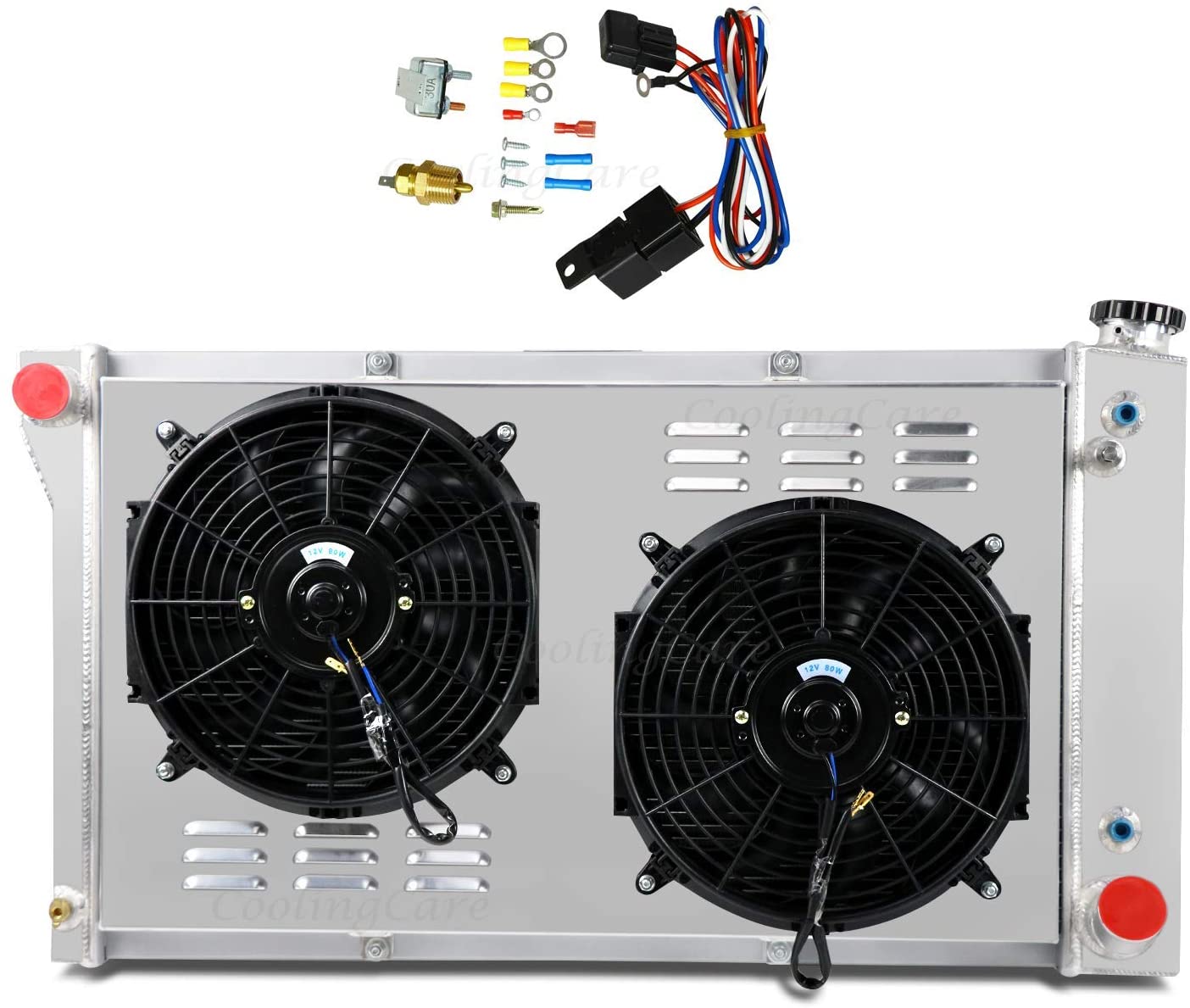

This listing is including
aluminum radiator+ 12 inch fan w/shroud+ fan relay thermostat kits
