Product Description
Reasonable inflation
Over-inflated tires have long braking distance and are easy to slip on rainy days, also the middle part of the tire will wear too fast. Under-inflated tires need to consume more fuel while driving, not good for purses and the environment. A resonable inflated tire save fuel, increase the tire's lifespan, improve the driving experience, and insure the driving safety. Please use tire pressure gauge to test the wheel pressure every week regularly when the tire is cold, especialy before long distance travel.

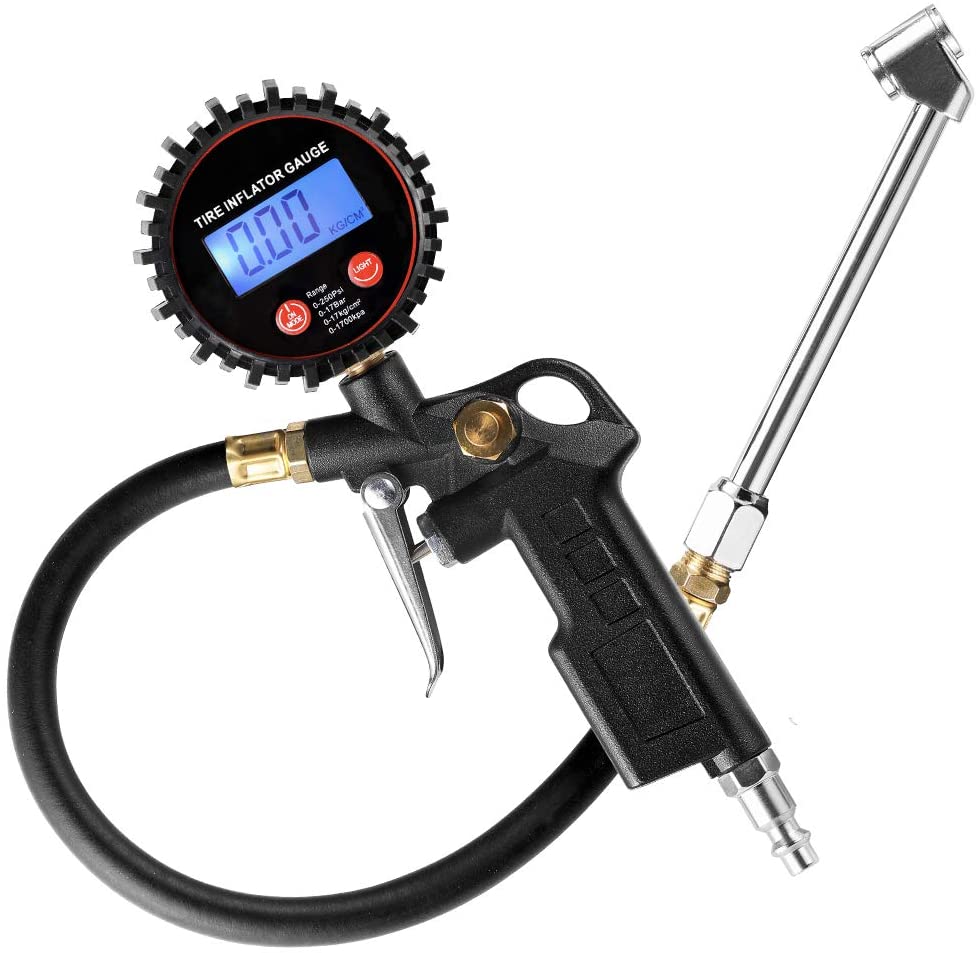

Tire inflator gauge
The tire inflator gauge gathers the tire inflator, deflator and pressure gauge, reduce the quantity of the tools and streamline the processes when inflating. You can check the pressure gauge when inflating or deflating, rather than inflate a tire, check the pressure, adjust, check, and repeat over and over again.
What the products gathers
- 1x aluminium tire inflator and deflator with 1/4" FNPT connector
- 1x 1/4" male NPT fittings
- 1x large blue backlit LED screen digital air gauge with 4 pressure measuring units
- 1x 13" long maximum pressure up to 250PSI rubber hose
- 1x dual head chucks with leak free valve core
Features
|
|
|
|
|---|---|---|
Tire inflator and deflatorSurface frosted aluminum handle. Press chrome plated iron "press to inflate" thumb trigger for inflating tyre, when 1/4" FNPT connector is connected to air pump and compressor by attached free 1/4" MNPT fitting. Brass air bleeder button is used for deflating over-inflated tire, no matter the inflator connects to air pump or not. |
Digital tyre pressure gageLarge blue backlit LED screen with "ON MODE" and "LIGHT" 2 buttons, 4 pressure measuring units (0-250PSI, 0-17KG/CM2, 0-17BAR, 0-1700KPA), 0.1 display resolution, gear-style rubber protecter, calibrated to ANSI B40.1 Grade B (2%) international accuracy standard, 2PCS AAA batteries are needed but not included. |
Air hose and dual head air chuck13" long, leak free, maximum pressure up to 250PSI heavy duty black rubber hose, equiped with brass parts. Dual head push-pull air chucks with leak free valve core, 30 degree forward head is specially designed for inner/single wheels or hard-to-touch valves, and 30 degree reverse chuck for outer wheels. 5-5/8" long chrome-plated iron stem alow you to reach the inner wheels and without dirty your hands. |
Wide fitment
You can use the tire inflator gauge to inflate tire, check the tire pressure, deflate over-inflated tire. 3 functions in 1 product, suitable for all air wheels with schrader valve, suitable for all vehicles such as truck bus RV car motorcycle bike(with schrader valve)
Inflate tire
Use the attached free 1/4" male NPT fitting to connect the tire inflator gauge 1/4" female NPT connector to the air pump or compressor pipe. Push the "push-pull to lock" air chuck to the tire valve. Power on the air pump or compressor, press the thumb trigger to inflate the tire.
Check the pressure gauge and deflate the over-inflated tire
When inflate the tyre, please always check the tire pressure gauge to make sure reasonable inflation. The LED screen will auto on when the inflator gauge connects to the tire valve, auto off after 20S inactivity. You can press the button to change the pressure measuring unit. Press the air bleeder button when over inflated.
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|
| Mechanical tire inflator gauge with dual head chuck | Mechanical tire inflator gauge gun with straight head chuck | Digital tire inflator gauge gun with dual head chuck | Digital tire inflator gauge gun with straight head chuck | Mechanical tire inflator gauge with straight head chuck | |
| Function | Inflate tire, check the tire pressure | Inflate tire, check the tire pressure, deflate over-inflated tire | Inflate tire, check the tire pressure, deflate over-inflated tire | Inflate tire, check the tire pressure, deflate over-inflated tire | Inflate tire, check the tire pressure, deflate over-inflated tire |
| Pressure gauge range | 10-120PSI | 0-220PSI, 0-16KG/CM2 | 0-250PSI, 0-17KG/CM2, 0-17BAR, 0-1700KPA | 0-250PSI, 0-17KG/CM2, 0-17BAR, 0-1700KPA | 0-220PSI, 0-15KG/CM2, 0-15BAR, 0-1500KPA |
| Pressure display | Magnifying bubble lens full view scale | 2-1/2" big dial | Large blue backlit LED screen | Large blue backlit LED screen | 2" big dial |
| Battery | Mechanism, no battery needed | Mechanism, no battery needed | 2PCS AAA baterries needed but not included | 2PCS AAA baterries needed but not included | Mechanism, no battery needed |
| Air chuck | Dual heads with push-pull 30° forward and reverse chuck | Straight air chuck, push and lock by the clip | Dual heads with push-pull 30° forward and reverse chuck | Straight air chuck, push and lock by the clip | Straight air chuck, push and lock by the clip |
| Fittings | 1/4" MNPT fittings included | 1/4" MNPT fittings included | 1/4" MNPT fittings included | 1/4" MNPT fittings included | 1/4" MNPT fittings, tire valve repair tool, valve cores, valve stem covers, storage box, PTFE seal tape roll included |
