Mishimoto MMRAD-F2D-11S Secondary Aluminum Radiator Compatible With Ford 6.7 Powerstroke 2011-2016

Mishimoto MMRAD-F2D-11S Secondary Aluminum Radiator Compatible With Ford 6.7 Powerstroke 2011-2016

Availability: In stock

Product type:

Vendor: PartLimit

$1,168.99 Regular price ~~$2,337.99~~

Quick Overview From the manufacturer Ford 6.7L Powerstroke Aluminum Secondary Radiator, 2011-2016 This 6.7 Powerstroke Secondary Radiator is constructed from high-quality aircraft-grade aluminum with a 100% brazed aluminum core 19%...

$1,168.99 Regular price ~~$2,337.99~~

Qty:

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

From the manufacturer

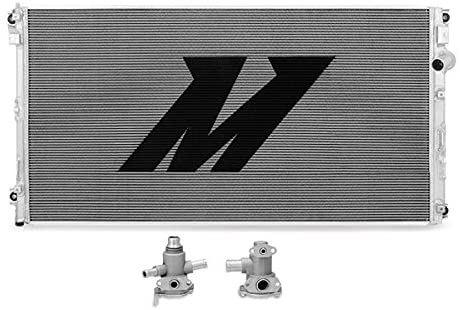

Ford 6.7L Powerstroke Aluminum Secondary Radiator, 2011-2016

This 6.7 Powerstroke Secondary Radiator is constructed from high-quality aircraft-grade aluminum with a 100% brazed aluminum core 19% thicker than factory.

During testing, we saw at coolant temperature reduction of at least 7°F and a 7° reduction in charge air temperatures.

The Mishimoto Ford 6.7 Powerstroke aluminum radiator retains factory fitment, fitting both the factory and Mishimoto Primary 6.7L Radiator, for an easy installation process.

The Details

Direct fit for 2011-2016 6.7L Powerstroke
Reduces coolant temperatures by up to 7°F
19% thicker core than factory
Reduces transmission, fuel, and EGR temperatures
Mishimoto Lifetime Warranty


Direct Fit Mishimoto engineers designed this 6.7L Powerstroke secondary radiator to fit both stock and Mishimoto primary radiators.	Reduced Temps During testing our engineers saw a 7°F drop in both coolant temps and charge air temps.	Increased Capacity This rad is 19% thicker than stock, and has a 27% increase in fin area, and 16% increase in tube surface area.	TIG-Welded This all-aluminum 6.7L Powerstroke secondary radiator features TIG-welds to increase durability.


Thermostat Housing Mishimoto included bolt-on thermostat housings to retain the hybrid two/three row functionality of the heat exchanger.	Serial Plate Mishimoto's 6.7L Powerstroke secondary radiator includes a serial plate for authenticity and easy product registration.	Included Drain Plug The included magnetic drain plug filters metal fragments from your Powerstroke's coolant to protect your engine.	Lifetime Warranty We take customer satisfaction seriously. Every Mishimoto product comes with a lifetime warranty, including accident protection.

Ford's 6.7L Powerstroke System

The secondary Ford 6.7 radiator, mounted in front of the primary, is responsible for heat exchange within the system that feeds coolant to anything else in the vehicle that is not the engine block itself or the oil cooler.

This includes the transmission cooler, the EGR cooler, the fuel cooler, and perhaps most importantly, the charge-air cooler.

Mishimoto's Removable Thermostat Housings

The exchanger itself is unique in its design; it uses two thermostats – one incorporated into each end tank – that direct the flow of the coolant as it flows among the numerous passages.

Additionally, the heat exchanger utilizes three rows of internal coolant passageways, but one of the aforementioned thermostats opens and closes one of the rows, giving the unit the ability to function as a two or a three-row radiator.

Time for Testing!

Ambient temperatures in the testing environment were about 65 degrees Fahrenheit, and we tested both the factory Ford 6.7 secondary radiator and the Mishimoto 6.7 secondary radiator under the same conditions and in the same session.

After numerous runs, we were able to consistently observe a seven degree drop in outlet temps with the Mishimoto secondary radiator, and a six degree drop in charge air temperatures as compared to the factory Super Duty radiator.

So Here's the Difference

For starters, the core itself is thicker than the factory core by about 19%. This allows for coolant to be distributed through a wider network of cooling tubes, amounting to a total increase in fin area of 27% over the factory Super Duty radiator.

The increased thickness allows for a decreased fin height, meaning that cooling tubes can fill the space more densely than they do on the factory unit, increasing the total effective cooling area.
