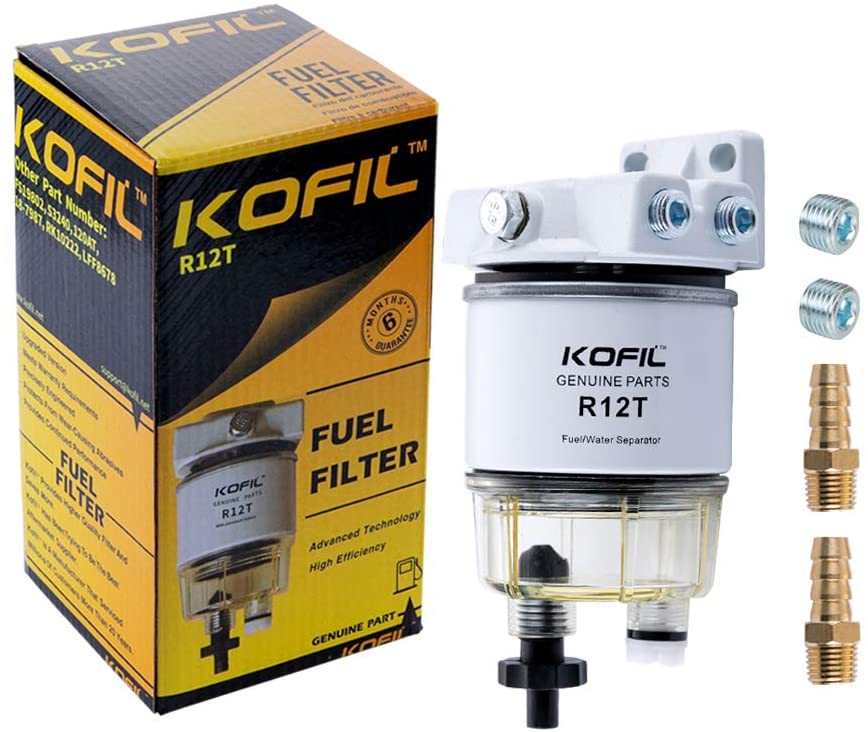

Specification:
1. Maximum flow rate (With diesel): 15GPH (57LPH);
2. Inlet / Outlet ports size: NPT, ZG1/4-19;
3. Total number of ports: 4, including 2 inlets, 2 outlets;
4. Center threads: M18 x 1.5;
5. Housing material: Die-cast aluminum head with clear, reuseable plastic bowl;
6. Maximum working pressure: 7.0 PSI (0.48 bar);
7. Water in bowl capacity: 1.8 oz. (52ml);
8. Water removal efficiency: 99%;
9. Maximum fuel temperature: 190degree (88 ℃);
Applications:
Fuel Water Separator Filter fit 3/8 Inch NPT Outboard Motors as well, these are more suited to compact off road diesel equipment: tractors,skid steers loaders,movers;
Replaces part number:
Replaces Racor S3240 R12T 120AT;
Replaces Sierra 18-7987;
Replaces RK10222.
18-7947, 187947, 17670-ZW1-030GH, 99105-20006, 9-37812, Honda Outboards 17670ZW1030GH, Suzuki Outboard 9910520006, Mallory 937812, 120RRAC01, 120RRAC02, 120R-RAC01, 120R-RAC02
Package included:
1 x filter element;
1 x filter bowl;
1x6 Months Warranty.
