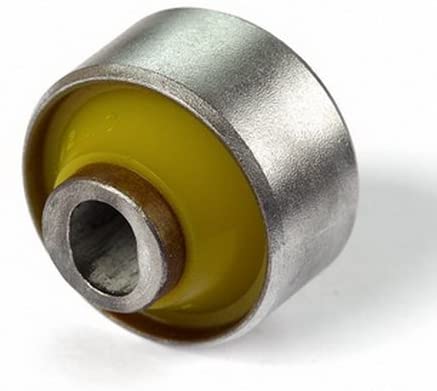

Siberian Bushing Polyurethane Front Suspension Rear Lower Arm Compatible with Mazda Premacy

Siberian Bushing Polyurethane Front Suspension Rear Lower Arm Compatible with Mazda Premacy

Availability: In stock

Product type:

Vendor: PartLimit

$28.99 Regular price ~~$57.99~~

Quick Overview Product Description Removal and installation of the control arm bushings with outer metal sleeve Attention! Before starting a work of the removing and installing of the control arm...

$28.99 Regular price ~~$57.99~~

Qty:

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Product Description

Removal and installation of the control arm bushings with outer metal sleeve

Attention! Before starting a work of the removing and installing of the control arm bushings without outer metal shell, choose the metal tubings (hub base and hub driver) for the removal and installation of bushing. O.D. of the hub driver must be the same as O.D. of the inner metal sleeve. Hub base I.D. must be 1-2 mm. bigger than O.D. of the bushing’s flange not to interfere the removing of the bushing. Forcing should be applied to the inner metal sleeve.

Removal

Choose the metal tubings (hub base and hub driver) for the removal and installation of the bushing. O.D. of the hub driver must be 0,5 mm. less than O.D. of the outer metal shell to avoid damage of the housing bore and control arm deformation. Hub base I.D. must be 1-2 mm. bigger than O.D. of the outer shell not to interfere the removing oа the bushing.
Place an arm supported by the hub base on a press.
Place a strut into the arm if it has a П-shaped profile.
Place a hub driver upon the bushing.
Press an old bushing out of the arm increasing pressure gradually to avoid a skewness of the hub driver and deformation of the housing bore and control arm.
After pressing the old bushing out, inspect the surface of the housing bore, clean, file and polish if any dirt, rust, burr.

Installation

Compare I.D. of the housing bore and O.D. of the bushing’s outer shell. O.D. of the bushing’s outer shell must exceed I.D. of the housing bore 0,2-0,5 mm. Difference in diameters provides required fixation of the bushing in housing bore in a result of the outer shell resiliency. If you do not detect the difference in diameters, ensure the correct bushing or change the control arm.
If marking of old bushing was done, mark new bushing exactly as dismantled one to provide the correct position of new bushing in the housing bore of the control arm.
Place a control arm upon the hub base into the press.
Insert the strut into the П-shaped arm to avoid deformation.
Place new bushing in a housing bore in marked position.
Place a hub driver upon the bushing.
Start pressing. Increase the load gradually to avoid skewness and deformation of the hub driver and bushing. While pressing, take a control over the alignment of the marks on the control arm and new bushing.
After the new bushing is pressed in, hold the control arm and ensure the correct position of new bushing in the housing bore of the control arm.

Detailed picture

Attention! After the bushings replacement, check the wheel alignment.

OEM style bushings

Siberian Bushing produce OEM style bushings which last longer than rubber counterparts and withstand extreme loads.
