About This Item
Manifold Gauge:
Features:
1. Heavy duty hook for hanging the manifold gauge in place.
2. No-flutter gauge design.
3. Solid Brass connections.
4. Three color hoses.
5. Ideal for R134, R12, R22, R502.
Technical Specifications:
1. Material: Brass Housing
2. Type: 2-Way Valve Manifold
3. Works for: R134 R12 R22 R502
4. Burst Pressure: 2500PSI
5. Max Working Pressure: 500PSI
6. Hose Length: 5Ft(Each Hose with 1/4" Fitting on Both End)
7. Condition Systems: R12 R22
8. Plastic Case: Not Included
9. Color: Red & Yellow & Blue & Golden
10. Weight: 1.5kg / 3.30lbs
11. Dimensions: (8.86 x 6.69 x 3.54)" / (22.5 x 17 x 9)cm (L x W x H)
12. Degree Centigrade: (℃) Reading
Vacuum Pump
Features:
1. Easy To See Oil Level Window - Oil viewing windows allows you to monitor oil quality and levels.
2. Easy To Maintain: Oil drain plug located at bottom of oil reservoir.
3. Easy To Operate: On/off switch.
4. Turn On & Go: Easy start & maintenance free.
5. Efficient Cooling: Built-in high volume cooling fan for extended use.
6. Portability: Non slip contoured carrying handle
7. Safety: Exhaust port with cap.
Technical Specifications:
1. Free Air Displacement: 3.5 CFM
2. Microns Rating: 37.5 microns (5pa)
3. Power: 1/4HP
4. Pump Speed: 1720 RPM
5. Voltage: 110V @ 60Hz
6. Inlet Port: 1/4" Flare
7. Oil Capacity: 330mL
8. Color: Blue
9. Dimensions: (14.57 x 10.63 x 6.69)" / (37 x 27 x 17)cm (L x W x H)
10. Material: Copper & Aluminum& Plastic

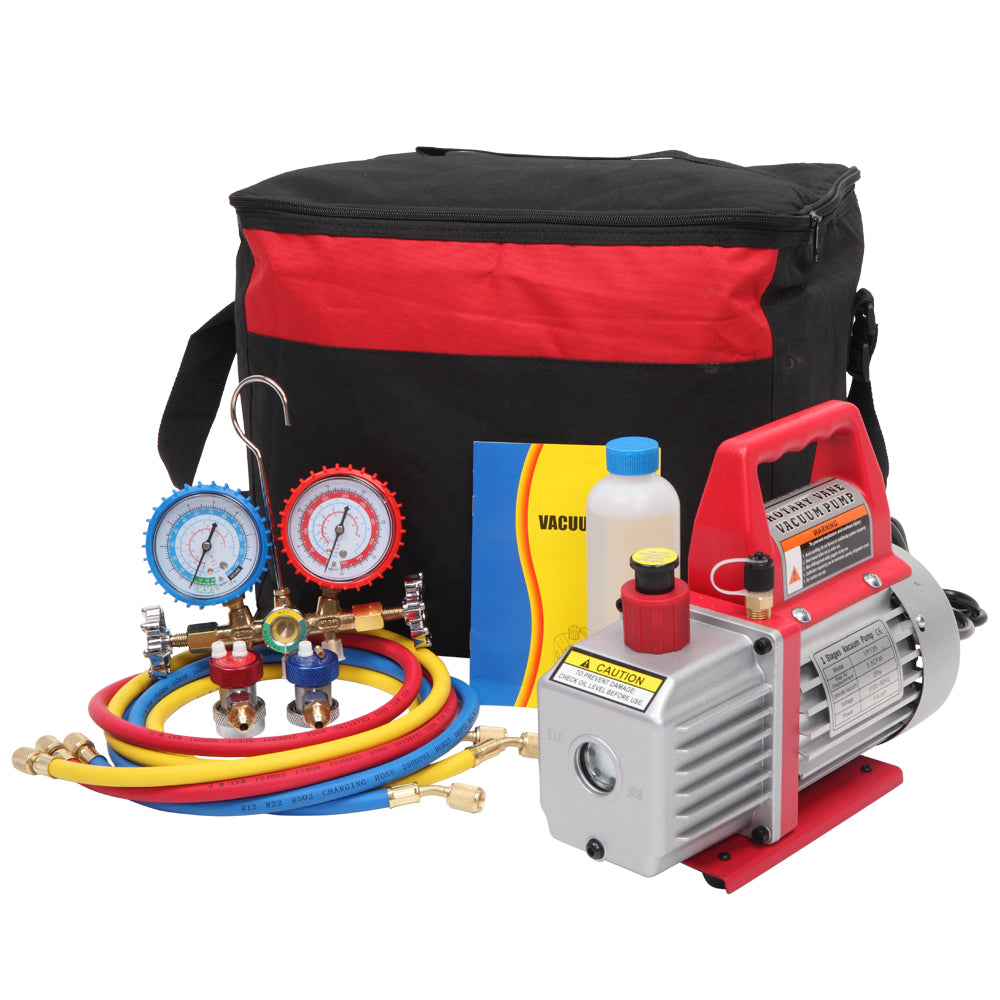

Package Contents:
Vaccum Pump:
1 x 1/4 HP 3.5 CFM Horsepower Vacuum Pump
1 x Bottles of Oil
Manifold:
1 x 2 Valve R134 R12 R22 R502 Manifold Gauge
1 x Red Hose
1 x Blue Hose
1 x Yellow Hose
- 3.5 CFM 1/4 HP 1 stages vacuum pump.
- Diagnosis R134 R12 R22 R502.
- 3 color hoses: red/blue/yellow.
- The drain plug is located at the bottom of the reservoir.
- Storage bags to keep equipment clean and dust-free.
Specifications
| Brand |
Ubesgoo
|
| Manufacturer Part Number |
DOESNOTAPPLY
|
| Assembled Product Weight |
16.53 lb
|
| Assembled Product Dimensions (L x W x H) |
12.99 x 10.04 x 6.69 Inches
|
