Description:

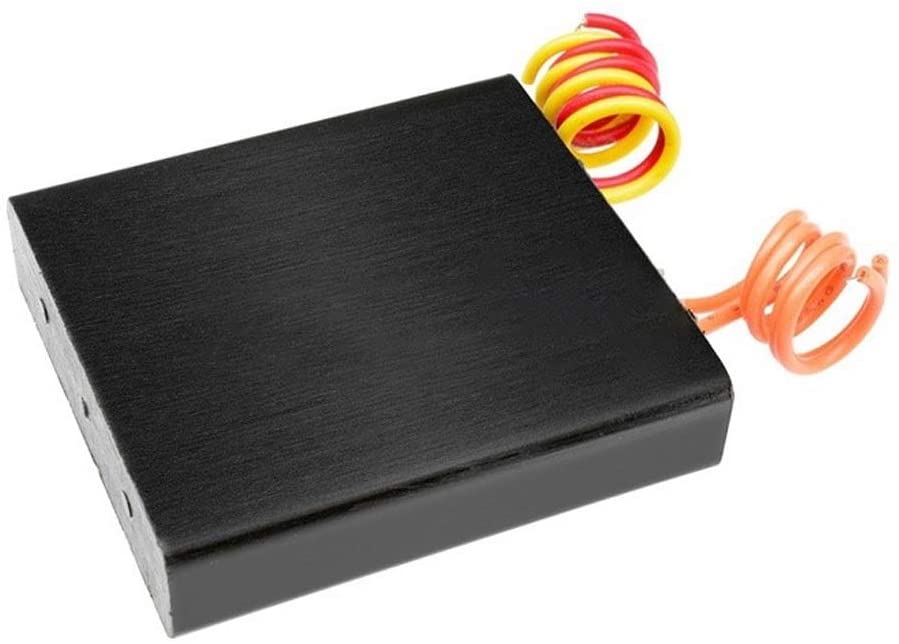

1. Module model: MC-CBPG
2. Volume: 40 * 36.5 * 8mm
3. Input voltage: 3.7V-6V
4. Input current: 0.5A-1A
5. Input line length: about 4 cm
6. High voltage type: pulse DC type
7. Output voltage: about 400KV (please pay attention to safety when using)
8. High-voltage pole discharge distance: 1.5cm-2cm
9.About power supply: recommend 6V and above 2000mAh for best results
Machine application:
Scientific experiment
2. Electronic equipment
3. Ionizer
4.DIY kit
Note:
1. Avoid powering up when no load is available. The proper distance of the high voltage terminal must be adjusted before starting the machine. The longer the arc distance, the higher the input voltage and the larger the battery capacity.
2. Do not exceed the maximum arc distance. Otherwise, the module is easily damaged due to excessive pressure and cannot release energy.
3. Can't work long hours.
4. Please connect the metal after the test to release the remaining energy!
5. High-voltage arc generator, high-temperature arc generator, can not ignite paper or cigarette
