27107566296 4WD Transfer Case Shift Actuator Shift Motor with Resistor for 2003-2010 BM-W E53 X5 E83 X3 ATC400 ATC500 ATC700 27107541782 27103455136 GELUOXI (Transfer Case Motor)

27107566296 4WD Transfer Case Shift Actuator Shift Motor with Resistor for 2003-2010 BM-W E53 X5 E83 X3 ATC400 ATC500 ATC700 27107541782 27103455136 GELUOXI (Transfer Case Motor)

Availability: In stock

Product type:

Vendor: PartLimit

$156.99 Regular price ~~$313.99~~

Quick Overview Product Description OEM Part Numbers: Reference ATC400 transfer case numbers: 27103455139, 27103455136, 27103455137, 27103455135, 27103455138, 27103455132. Reference ATC500 transfer case numbers: 27107555297, 27107555295. Reference ATC700 transfer case numbers:...

$156.99 Regular price ~~$313.99~~

Qty:

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Product Description

OEM Part Numbers:

Reference ATC400 transfer case numbers: 27103455139, 27103455136, 27103455137, 27103455135, 27103455138, 27103455132.
Reference ATC500 transfer case numbers: 27107555297, 27107555295.
Reference ATC700 transfer case numbers: 27107599889, 27107599886, 27107599899, 27107599898, 27107599890, 27107599887.
Reference ATC400, ATC500 actuator number: 27107566296,27107541782, 27102449709, 27107568267

About Transfer Case Shift Motor

Transfer Case Shift Motor is a part of some vehicle's four-wheel drive (4WD) system and is responsible for switching between the vehicle's different two and four-wheel drive options. It is a small electric motor that moves parts within the transfer case itself to activate the various modes of the 4WD system.

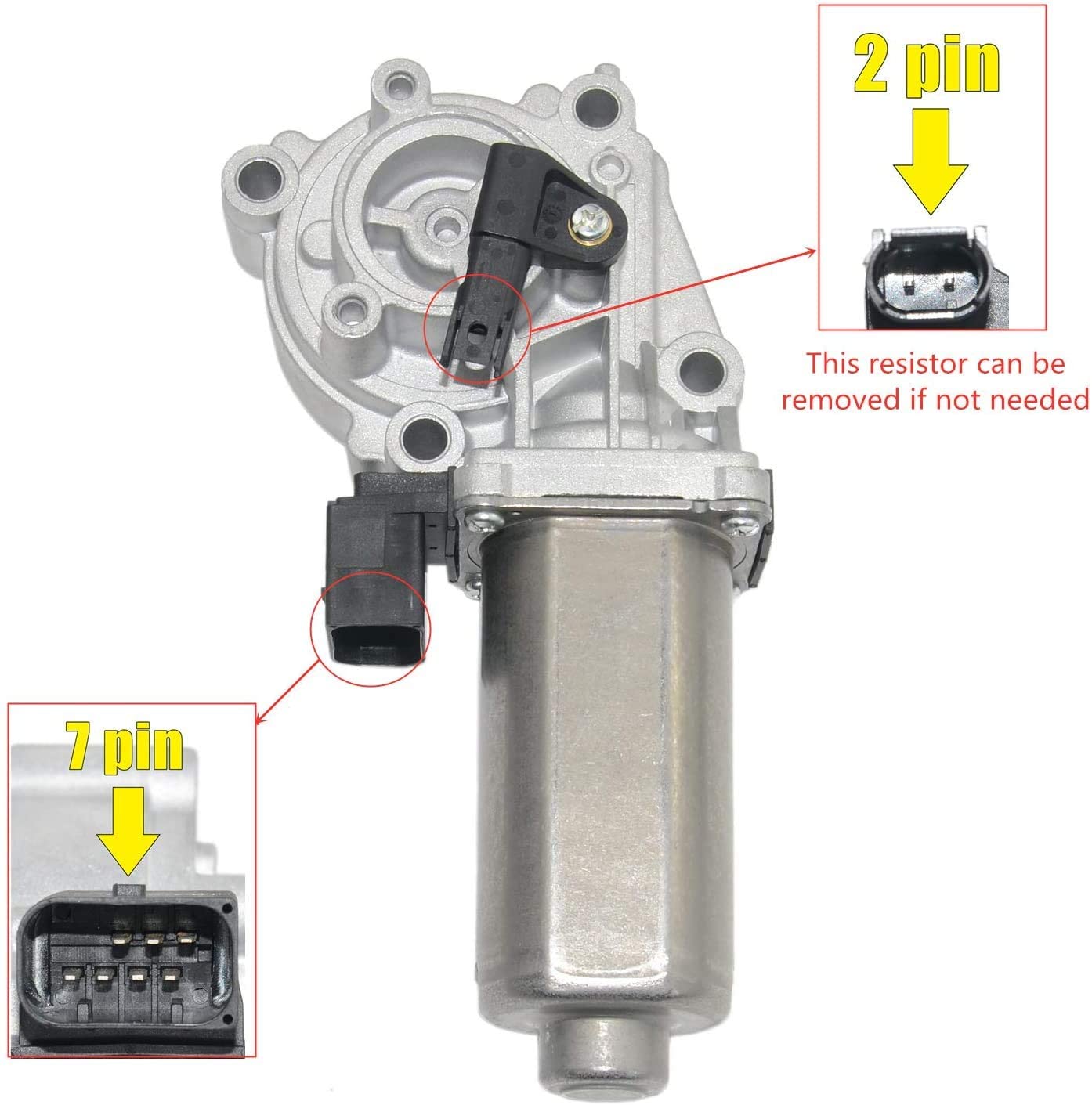

This transfer case shift motor has a movable resistor pre-installed. If you don't need it, you can remove it easily.
Don't forget to code it to the car with a professional scanner once you finish replacing it so the 4x4 light goes off.

How to Install a new Transfer Case Shift Motor?

1. Remove the front driveshaft in order to access the shift motor.

2. Get the transfer case shifted into its neutral position.

3. Turn the transfer case shift shaft with a crescent wrench.

4. Disconnect the electrical connections, unbolt the old shift motor, and bolt on and reconnect the new one.

Use for the Following Vehicles:


2010 BMW X3 2.5si Sport Utility 4-Door 2.5L 2010 BMW X3 3.0si Sport Utility 4-Door 3.0L 2010 BMW X3 25i M Sport Sport Utility 4-Door 2.5L 2010 BMW X3 25i Top Line Sport Utility 4-Door 2.5L 2010 BMW X3 xDrive28i Sport Utility 4-Door 3.0L 2010 BMW X3 xDrive30i Sport Utility 4-Door 3.0L 2009 BMW X3 2.5si Sport Utility 4-Door 2.5L 2009 BMW X3 3.0si Sport Utility 4-Door 3.0L 2009 BMW X3 xDrive30i Sport Utility 4-Door 3.0L	2008 BMW X3 3.0i Sport Utility 4-Door 3.0L 2008 BMW X3 3.0si Sport Utility 4-Door 3.0L 2007 BMW X3 2.5si Sport Utility 4-Door 2.5L 2007 BMW X3 3.0si Sport Utility 4-Door 3.0L 2006 BMW X3 2.5i Sport Utility 4-Door 2.5L 2006 BMW X3 3.0i Sport Utility 4-Door 3.0L 2006 BMW X5 3.0i Sport Utility 4-Door 3.0L 2006 BMW X5 4.4i Formula 1 Sport Utility 4-Door 4.4L 2006 BMW X5 4.4i Lujo Sport Utility 4-Door 4.4L 2006 BMW X5 4.4i Sport Utility 4-Door 4.4L	2006 BMW X5 4.4i Top Line Sport Utility 4-Door 4.4L 2006 BMW X5 4.8is Sport Utility 4-Door 4.8L V8 2005 BMW X3 2.5i Sport Utility 4-Door 2.5L 2005 BMW X3 3.0i Sport Utility 4-Door 3.0L 2005 BMW X5 3.0i Sport Utility 4-Door 3.0L 2005 BMW X5 4.4i Formula 1 Sport Utility 4-Door 4.4L 2005 BMW X5 4.4i Lujo Sport Utility 4-Door 4.4L V8 2005 BMW X5 4.4i Sport Utility 4-Door 4.4L V8 2005 BMW X5 4.4i Top Line Sport Utility 4-Door 4.4L 2005 BMW X5 4.8is Sport Utility 4-Door 4.8L

2004 BMW X3 2.5i Sport Utility 4-Door 2.5L

2004 BMW X3 3.0i Sport Utility 4-Door 3.0L

2004 BMW X5 3.0i Sport Utility 4-Door 3.0L

2004 BMW X5 4.4i Formula 1 Sport Utility 4-Door 4.4L

2004 BMW X5 4.4i Lujo Sport Utility 4-Door 4.4L

2004 BMW X5 4.4i Sport Utility 4-Door 4.4L

2004 BMW X5 4.4i Top Line Sport Utility 4-Door 4.4L

2004 BMW X5 4.8is Sport Utility 4-Door 4.8L V8

2003 BMW X5 3.0i Sport Utility 4-Door 3.0L

2003 BMW X5 4.4i Formula 1 Sport Utility 4-Door 4.4L V8

2003 BMW X5 4.4i Lujo Sport Utility 4-Door 4.4L V8

2003 BMW X5 4.4i Sport Utility 4-Door 4.4L V8

2003 BMW X5 4.4i Top Line Sport Utility 4-Door 4.4L V8

2003 BMW X5 4.6is Sport Utility 4-Door4.6L V8
